Description

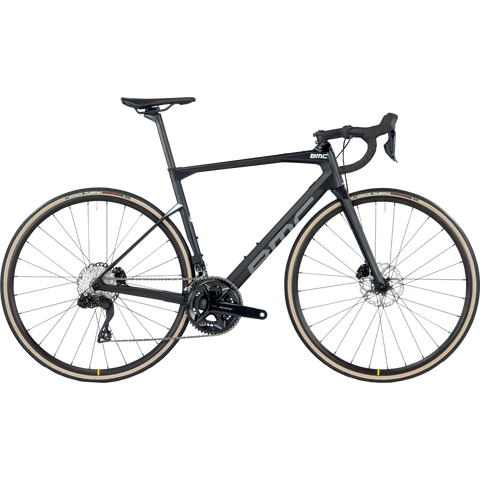

The Roadmachine’s frame and fork are constructed in BMC's Premium Carbon with all the benefits of the built-in TCC Endurance technology. This road bike's clean aesthetic comes courtesy of internal cable routing, whilst the Premium Carbon D-Shape seatpost ensures next-level compliance in the saddle. This Roadmachine is specced with a Shimano 105 Di2 2x12 Drivetrain, Mavic Open Disc wheels, 28mm tires and an aluminum handlebar and stem.
- Shimano 105 Di2 Drivetrain
- Mavic Open Disc Wheelset
- Tuned Compliance Concept (TCC) Endurance
- Integrated Cable Routing
- Carbon D-Shape Seatpost
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
-
Brakes
SHIMANO 105 BR-R7170 | SHIMANO SM-RT70 160 -
Crank
SHIMANO 105 FC-R7100 -
Drivetrain
SHIMANO 105 CS-R7100, 105 CN-M6100 -
Frame
Premium Carbon with TCC -
Wheels
Mavic Open Disc
| Component | Part |
|---|---|
| Frame | Roadmachine Premium Carbon with TCC Endurance, Internal Cable Routing, PF86 Bottom Bracket, Flat Mount Disc, 12x142mm Thru-Axle |
| Fork | Roadmachine Premium Carbon with TCC Endurance, Internal Cable Routing, Flat Mount Disc, 12x100mm Thru-Axle |
| Gears | 2x12 |
| Chainwheel | SHIMANO 105 FC-R7100 50-34T |
| Cassette | SHIMANO 105 CS-R7100 11-34T |
| Chain | SHIMANO 105 CN-M6100 12spd |
| Rear Derailleur | SHIMANO 105 Di2 RD-R7150 |
| Shifters | SHIMANO 105 Di2 ST-R7170 |
| Brakes | SHIMANO 105 BR-R7170 | SHIMANO SM-RT70 160 / 140mm |
| Handlebar | BMC RAB 03 - Ergo Top Shape - Compact Bend |
| Stem | BMC RSM01 |
| Seatpost | Roadmachine Premium Carbon D-Shaped Seatpost, 15mm Offset |
| Saddle | Fizik Antares R7 |
| Hubs | CL-712 (F)/RXC-1425 (R) - Thru Axle |
| Rims | Mavic Open Disc |
| Tires | VITTORIA RUBINO - 28mm |
| Tire Clearance | 33mm (Measured Width) |
| Weight Limit | 110 Kg |
| ASTM Classification | Level 2 |
* Specs subject to change
