Women's Doppler Cafe+
$1,499.99
Women's Doppler Cafe+
$1,499.99
The Doppler offers riders a traditional brevet and touring bike with smooth-rolling 650B tires that can venture into the dirt for those off-road excursions . While gravel riding is the latest trend, 650b wheels have been a well-kept secret within the brevet community for decades! 650b offers a distinct advantage by offering a larger-volume tire to provide both greater cushion and traction on rough roads. The smaller- diameter 650b rims also provide a stronger wheel which is ideal for loaded touring or harsh conditions. Compared to the Inversion and Radar the Doppler frame offers a more classic road bike geometry while still offering a high level of functionality with a wide-range drivetrain and frame features.
Brakes
Shimano MT200 hydraulic disc
Crank
Forged 1X, 40T
Drivetrain
Shimano Deore 1 x 10
Frame
Steel
Wheels
650B WTB ST Light i23 disc
| COMPONENT | PART |
|---|---|
| Frame | Breezer butted-chromoly steel, 44mm headtube, BSA Threaded BB, 142 x 12mm |
| Fork | Chromoly disc, 1 1/8", rack / fender & side bottle mounts, 100 x 12mm through-axle |
| Crankset | Forged 1X, 40T |
| Bottom Bracket | Sealed-bearing, BSA |
| Rear Derailleur | Shimano Deore, long cage, shadow plus |
| Shifters | Shimano Deore, 10-speed |
| Cassette | Shimano HG500, 11-42T, 10-speed OR SunRace CSMS2 |
| Chain | Shimano HG54 |
| Wheelset | 650B WTB ST Light i23 disc, tubeless compatible, 100 x 12 sealed-bearing front dynamo hub, 14g SS spokes, 32H |
| Tires | WTB Horizon, 650 x 47c, wire bead |
| Brakeset | Shimano MT200 hydraulic disc, 160mm rotor OR Tektro HD-T275 |
| Brake Levers | Shimano MT201 alloy OR Tektro HD-T275 |
| Headset | FSA 1 1/8â€, No.10 ZS44 |
| Handlebar | Breezer Sweeper Bar, 680mm width, 20° backweep |
| Stem | Breezer B-Road, 3D-forged 6061 stem body, +/-7° |
| Grips | Breezer Ergo cork lock-on |
| Saddle | WTB Volt Comp 142x265, steel rail |
| Seatpost | Breezer, 6061 alloy, 27.2mm diameter |
| Fenders | Alloy fenders w/ struts |
| Headlight | Busch & Muller IQ-XS, 70lux w/ standlight |
| Taillight | AXA Retro, battery |
* Specs subject to change

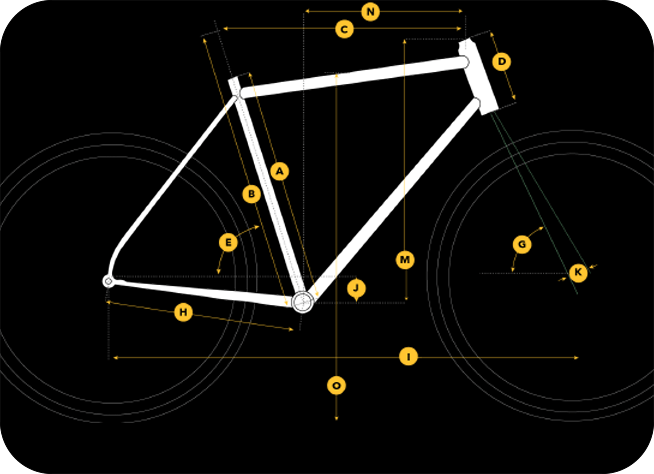

| Fig. | 49cm | 52cm | 54cm | 56cm | 58cm | 60cm | |
|---|---|---|---|---|---|---|---|
| A | Seat Tube, Center to Top (in) | 19.29 | 20.47 | 21.26 | 22.05 | 22.83 | 23.62 |
| C | Top Tube, Effective (in) | 20.39 | 21.46 | 22.05 | 22.44 | 23.03 | 23.62 |
| D | Head Tube Length (in) | 3.94 | 4.72 | 5.71 | 6.30 | 6.89 | 7.48 |
| E | Seat Tube Angle | 75° | 74° | 73° | 73° | 72.5° | 72° |
| G | Head Tube Angle | 68° | 70° | 70° | 70° | 71.5° | 72° |
| H | Chainstay Length (in) | 17.72 | 17.72 | 17.72 | 17.72 | 17.72 | 17.72 |
| I | Wheelbase (in) | 41.65 | 41.69 | 42.01 | 42.44 | 42.13 | 42.44 |
| J | Bottom Bracket Drop (in) | 2.68 | 2.68 | 2.56 | 2.56 | 2.44 | 2.44 |
| K | Fork Offset (in) | 1.97 | 1.97 | 1.97 | 1.97 | 1.97 | 1.97 |
| M | Stack (in) | 19.84 | 20.82 | 21.72 | 22.27 | 22.66 | 23.33 |
| N | Reach (in) | 14.74 | 15.06 | 15.21 | 15.44 | 15.76 | 16.04 |
| RIDER HEIGHT | BIKE SIZE |
|---|---|
| 5'3" - 5'5" | 49 cm |
| 5'5" - 5'8" | 52 cm |
| 5'7" - 5'10" | 54 cm |
| 5'10" - 6'0" | 56 cm |
| 6'0" - 6'2" | 58 cm |
| 6'2" - 6'4" | 60 cm |
