Quick 5
$725.00





+1

Quick 5
$725.00
A swift, sporty bike that’s perfect for getting a workout, city cruising or just getting out and feeling good.
- Where it thrives: In town, leisurely rides, on crowded streets
- What it's built for: Agility, visibility, comfort
- Lightweight aluminum frame w/ 360° reflective accents
- Shimano Tourney TX 14-speed drivetrain w/ disc brakes
- Integrated connectivity with Cannondale App
Brakes
Promax mechanical disc
Crank
Shimano Tourney, 46/30
Drivetrain
Shimano Tourney, 2x7
Frame
Aluminum
Wheels
Cannondale Disc
COMPONENT | PART |
---|---|
Frame | SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity |
Fork | Chromoly, 1-1/8" steerer, OutFront offset, flat mount disc, mid-blade mounts |
Rims | Cannondale Disc, double wall w/eyelet, 32h |
Hubs | (F) Shimano HB-TX505, QR / (R) Shimano FH-TY505, QR |
Spokes | Stainless Steel, 14g |
Tires | Schwalbe Spicer, 700 x 35c, K-Guard, reflective strip |
Pedals | Cannondale Fitness |
Crank | Shimano Tourney, 46/30 |
Bottom Bracket | Cartridge, square taper |
Chain | KMC Z7, 7-speed |
Rear Cogs | Shimano HG200, 12-32, 7-speed |
Front Derailleur | Shimano Tourney, 31.8 clamp |

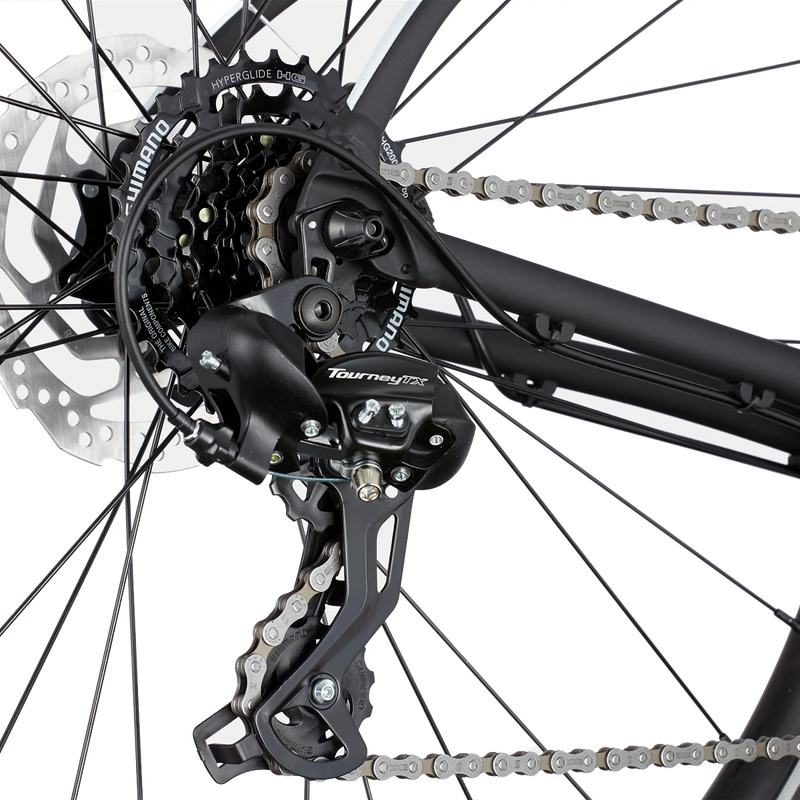

Rear Derailleur | Shimano Tourney |
Shifters | Shimano M315 Rapidfire Plus, 7-speed |
Handlebar | 6061 Alloy Double-butted, 25mm rise, 8° sweep, 6° rise, 640mm |
Grips | Cannondale Ergo Fitness |
Stem | 6061 Alloy, 31.8, 8° |
Headset | Integrated, 1-1/4"-1-1/8" |
Brakes | Promax mechanical disc, 160/160mm rotors |

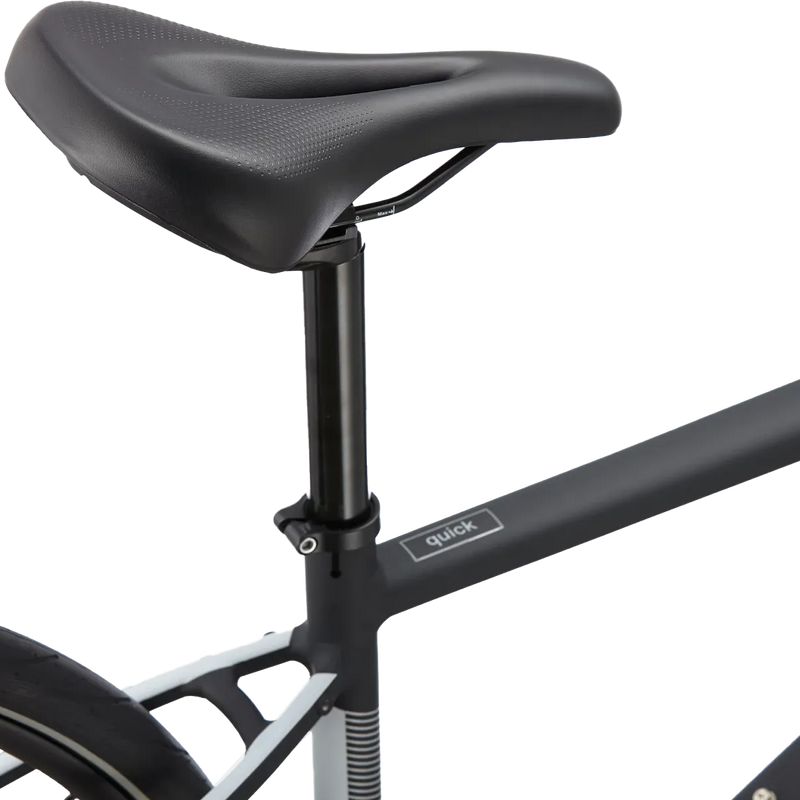

Saddle | Cannondale Fitness Ergo Double Density |
Seatpost | 6061 Alloy, 27.2 x 350mm |
* Specs subject to change
Quick | SM | MD | LG | XL | 2XL |
---|---|---|---|---|---|
A Seat Tube Length (cm/ in) | 40/ 15.6 | 45/ 17.6 | 50/ 19.5 | 55/ 21.5 | 60/ 23.4 |
B Top Tube Horizontal (cm/ in) | 56.7/ 22.2 | 58.3/ 22.8 | 59.8/ 23.4 | 61.3/ 24 | 62.8/ 24.5 |
C Top Tube Actual (cm/ in) | N/A | N/A | N/A | N/A | N/A |
D Head Tube Angle | 71.0° | 71.0° | 71.0° | 71.0° | 71.0° |
E Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
F Standover (cm/ in) | 69.9/ 27.3 | 74.1/ 28.9 | 78.2/ 3.5 | 82.2/ 32.1 | 86.2/ 33.7 |
G Head Tube Length (cm/ in) | 13.3/ 5.2 | 15.8/ 6.2 | 18.4/ 7.2 | 20.9/ 8.2 | 23.4/ 9.2 |
H Wheelbase (cm/ in) | 105.3/ 41.1 | 106.9/ 41.7 | 108.6/ 42.4 | 110.2/ 43 | 111.8/ 43.7 |
I Front Center (cm/ in) | 62.7/ 24.5 | 64.3/ 25.1 | 66/ 25.8 | 67.6/ 26.4 | 69.2/ 27 |
J Chain Stay Length (cm/ in) | 43.5/ 17 | 43.5/ 17 | 43.5/ 17 | 43.5/ 17 | 43.5/ 17 |
K Bottom Bracket Drop (cm/ in) | 6.8/ 2.7 | 6.8/ 2.7 | 6.8/ 2.7 | 6.8/ 2.7 | 6.8/ 2.7 |
L Bottom Bracket Height (cm/ in) | 28.2/ 11 | 28.2/ 11 | 28.2/ 11 | 28.2/ 11 | 28.2/ 11 |
M Fork Rake (cm/ in) | 5.5/ 2.2 | 5.5/ 2.2 | 5.5/ 2.2 | 5.5/ 2.2 | 5.5/ 2.2 |
N Trail (cm/ in) | 6.2/ 2.5 | 6.2/ 2.5 | 6.2/ 2.5 | 6.2/ 2.5 | 6.2/ 2.5 |
O Stack (cm/ in) | 55.4/ 21.7 | 57.8/ 22.6 | 60.2/ 23.5 | 62.6/ 24.5 | 65/ 25.4 |
P Reach (cm/ in) | 39.8/ 15.6 | 40.6/ 15.9 | 41.4/ 16.2 | 42.2/ 16.5 | 43/ 16.8 |
RIDER HEIGHT | BIKE SIZE |
---|---|
5'2" - 5'7" | S |
5'5" - 5'10" | M |
5'9" - 6'2" | L |
6'0" - 6'5" | XL |
6'4" - 6'9" | XXL |
