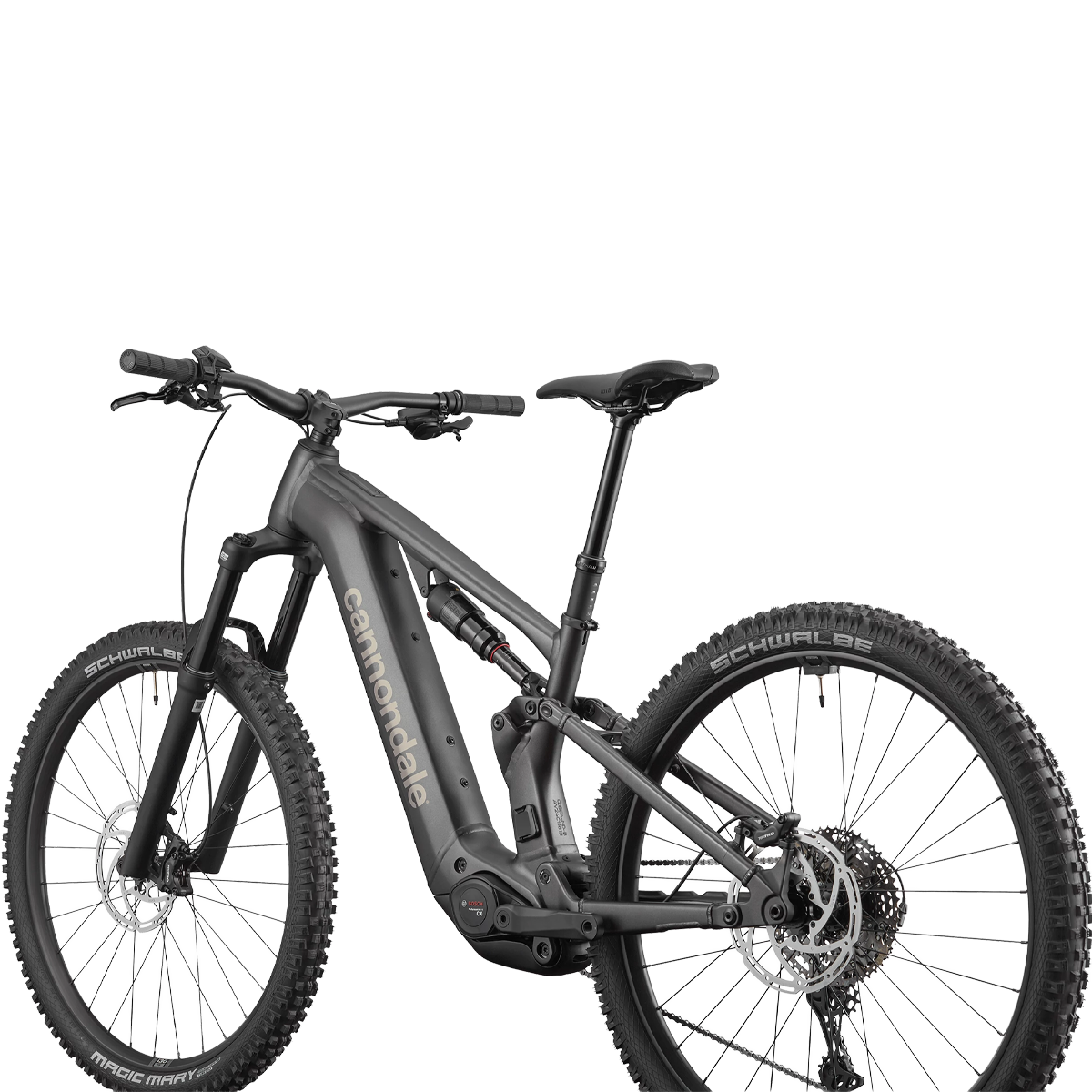

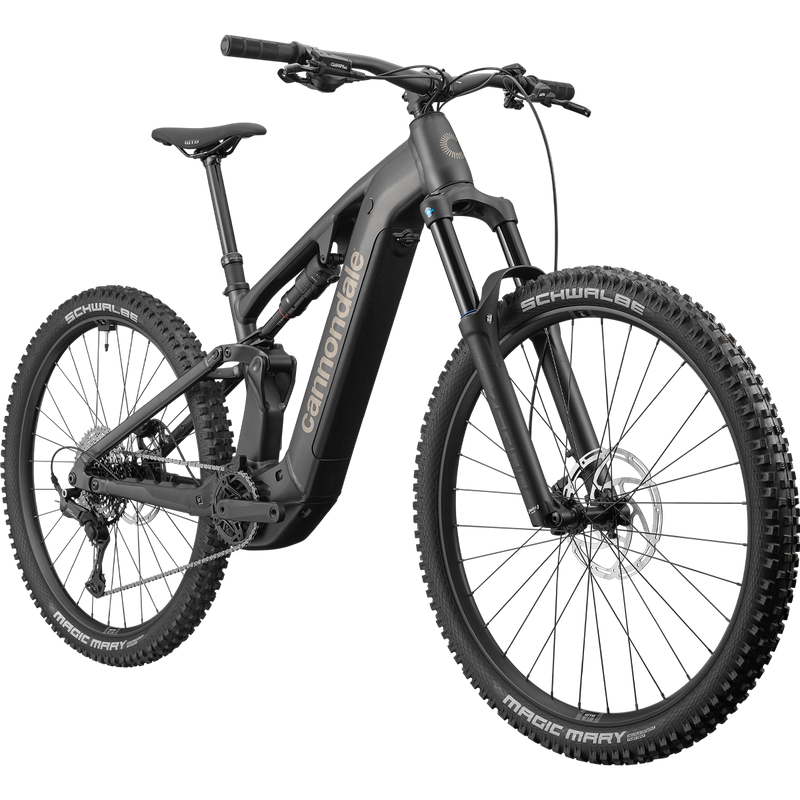

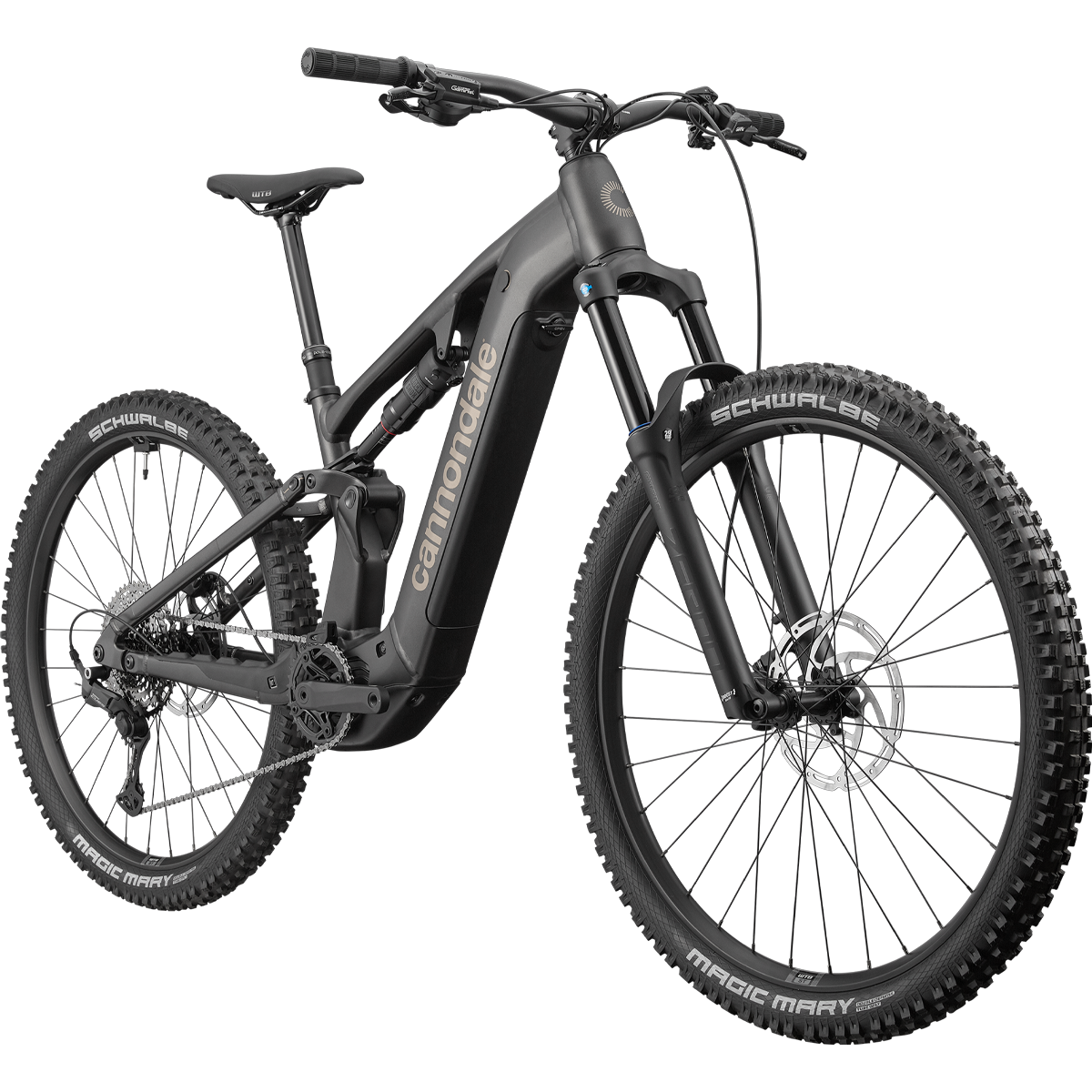

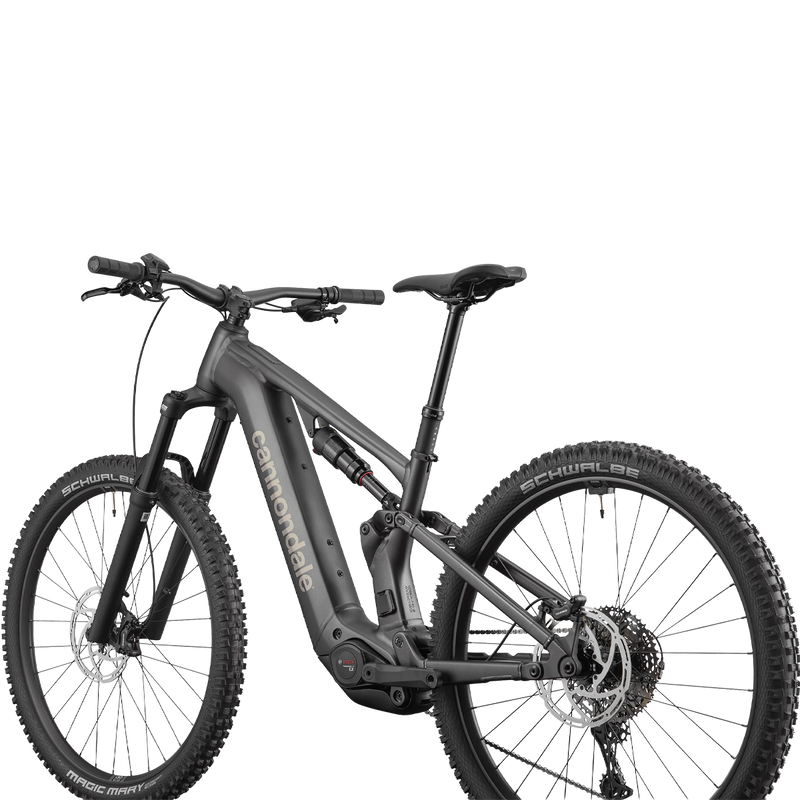

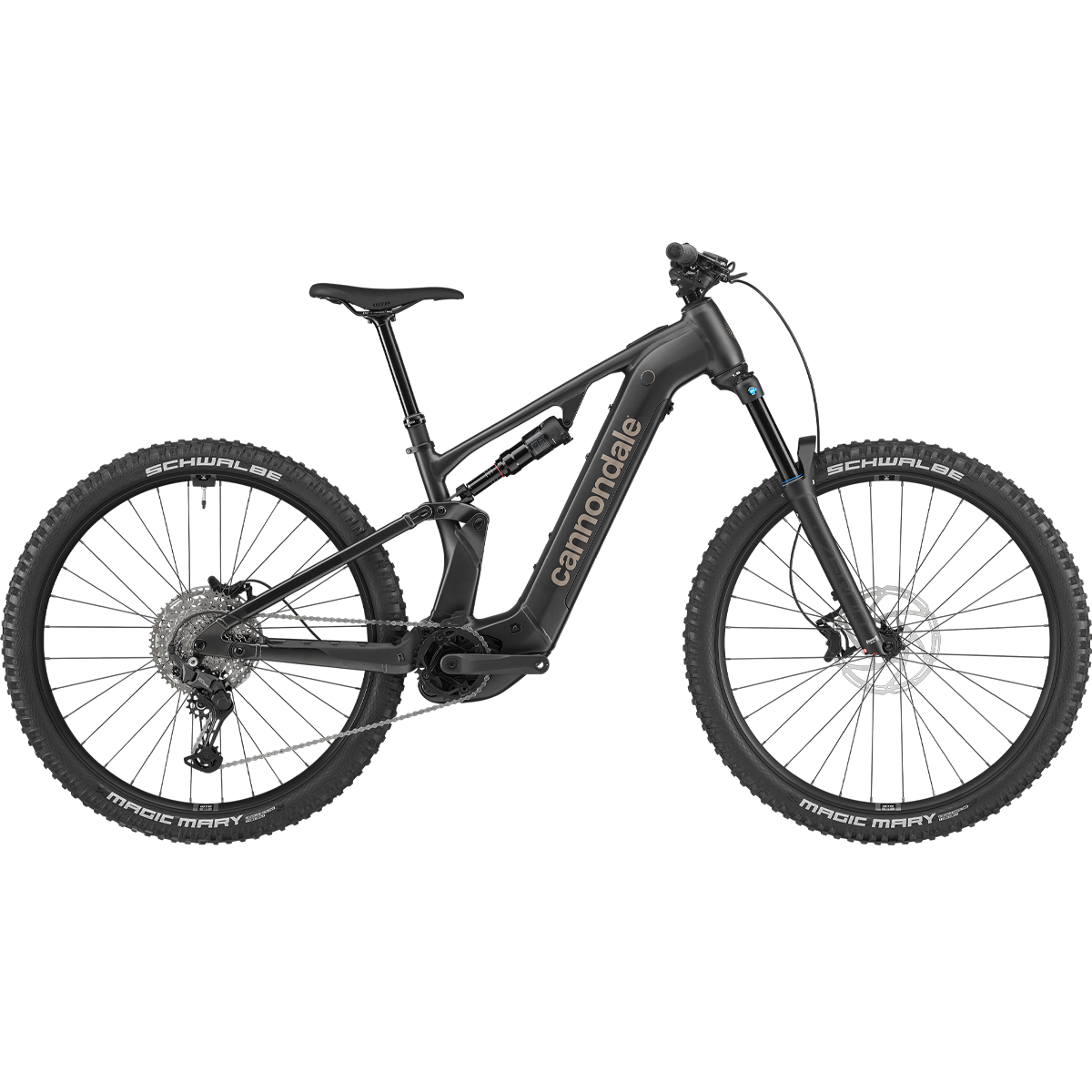

Moterra Neo 4
Moterra 4 strips things down to the essentials—reliable, rugged, and ready for anything. A SmartForm C1 Alloy frame with a RockShox Deluxe Select shock and rugged Suntour Zeron 36X fork deliver a ride that is balanced, planted and predictable. Bosch’s most powerful CX motor and big 600Wh battery deliver smooth, sustained power, with more than enough range to keep things interesting. A Shimano CUES U6000 drivetrain and Tektro Gemini SL 4-piston brakes handle the stops and shifts, making this an always-game partner for off-road exploration and all-day excursions.
- What it's for: Endless spins, uphill wins, and permanent grins on all kinds of trails, from the mild to the wild
- A premium SmartForm C1 Alloy frame - light, stiff, and guaranteed for life
- Climb-crushing strength and natural feeling power delivery from Bosch's most powerful motor, the Performance CX
- Interchangeable 600Wh battery provides an ideal balance of range and light weight
- Smooth-riding SR Suntour Zeron 36-X Boost 160mm fork, and RockShox Deluxe Select air shock
- Precise shifting from Shimano’s CUES U6000 LinkGlide 11-speed drivetrain
- Strong, controllable braking from Tektro Gemini SL 4-piston hydraulic disc brakes with 203mm rotors
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
| COMPONENT | PART |
|---|---|
| Frame | Moterra SmartForm C1 alloy, 29" wheels, 150mm travel, Cannondale Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post-mount brake, 1.5"-1.8" tapered headtube, 40mm two-bolt kickstand compatible, integrated Moterra rear rack and fender mounts |
| Fork | SR Suntour Zeron 36-X Boost, 160mm, EQ Air, compression & rebound adjust, 15x110mm thru-axle, tapered steerer, 44mm offset |
| Headset | Acros ICR, 1.5" to 1.8", sealed bearings |
| Rear Shock | RockShox Deluxe Select, DebonAir+, adjustable rebound, 230x62.5mm |

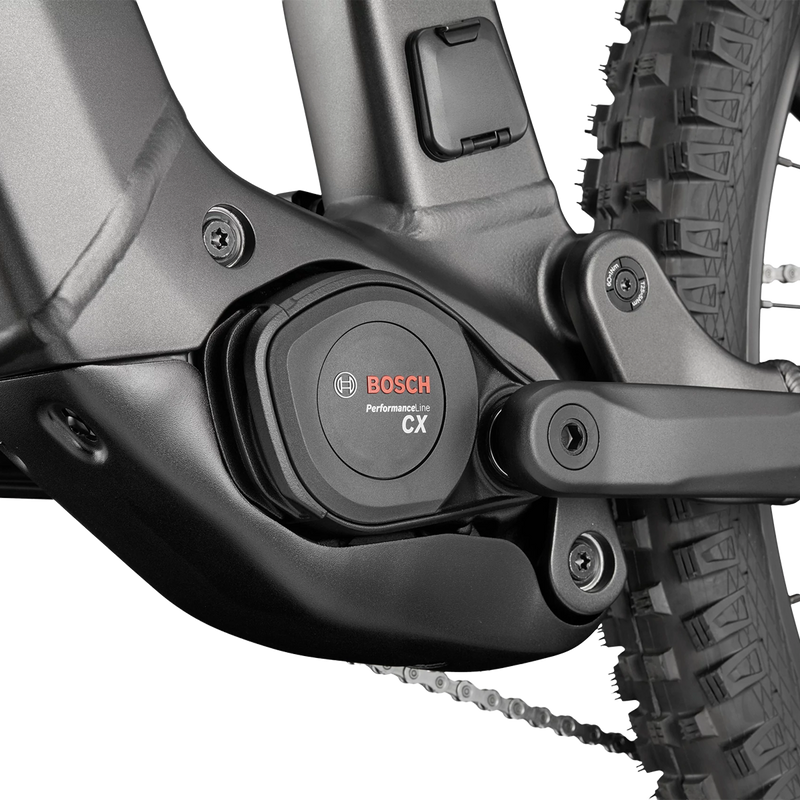

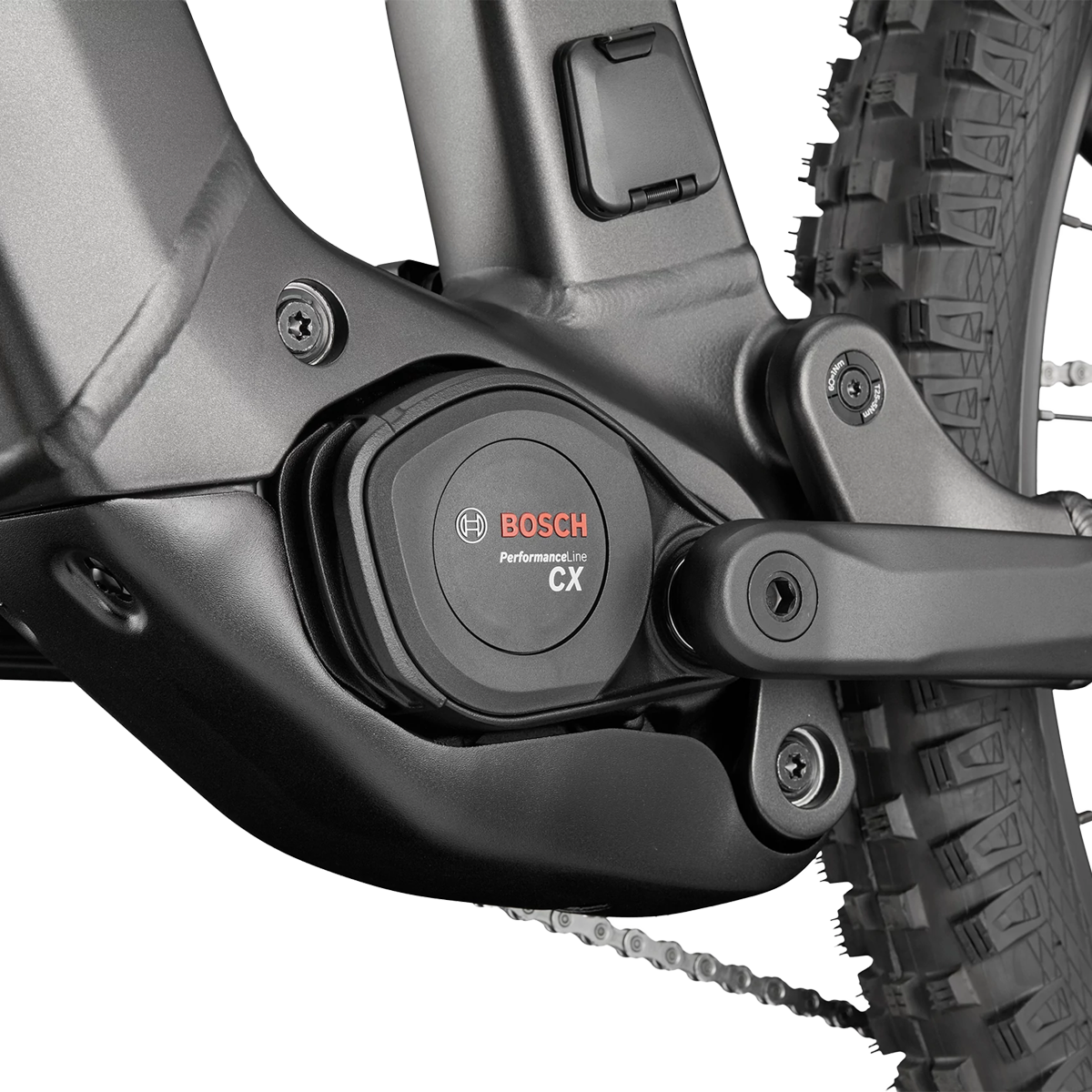

| Drive Unit | Bosch Performance Line CX |
| Battery | Bosch PowerTube, 600Wh |
| Charger | Bosch 4A |
| Display | Bosch LED Remote |

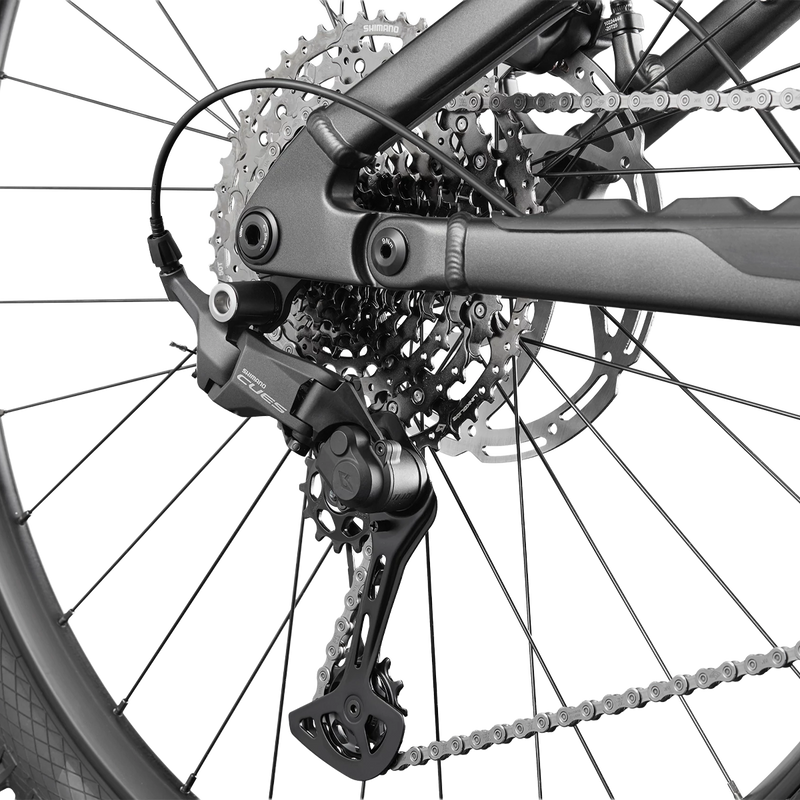

| Rear Derailleur | Shimano CUES U6000, LinkGlide |
| Shifters | Shimano CUES U6000, 11-speed, LinkGlide |
| Chain | Shimano LG500, LinkGlide, 11-speed |
| Crankset | FSA Bosch e-bike crank, 55mm chainline, 160mm, 34T |
| Cassette | Shimano CUES LG400, LinkGlide, 11-50T, 11-speed |
| Brakes | Tektro Gemini SL, 4-piston hydraulic disc |
| Brake Levers | Tektro Gemini SL hydraulic disc |
| Brake Rotor Size | 203mm |
| Rims | WTB ST i30 TCS, 30mm inner width, 32h, tubeless compatible |
| Spokes | DT Swiss Champion 2.0 |
| Wheel Size | 29" |
| Tire Size | 2.4" |
| Hubs | (F) Shimano TC500, 15x110mm thru-axle / (R) Shimano TC500, 12x148mm thru-axle, Center Lock |
| Front Tire | Schwalbe Magic Mary Performance, 29x2.4", Addix, foldable, TLR |
| Rear Tire | Schwalbe Magic Mary Performance, 29x2.4", Addix, foldable, TLR |

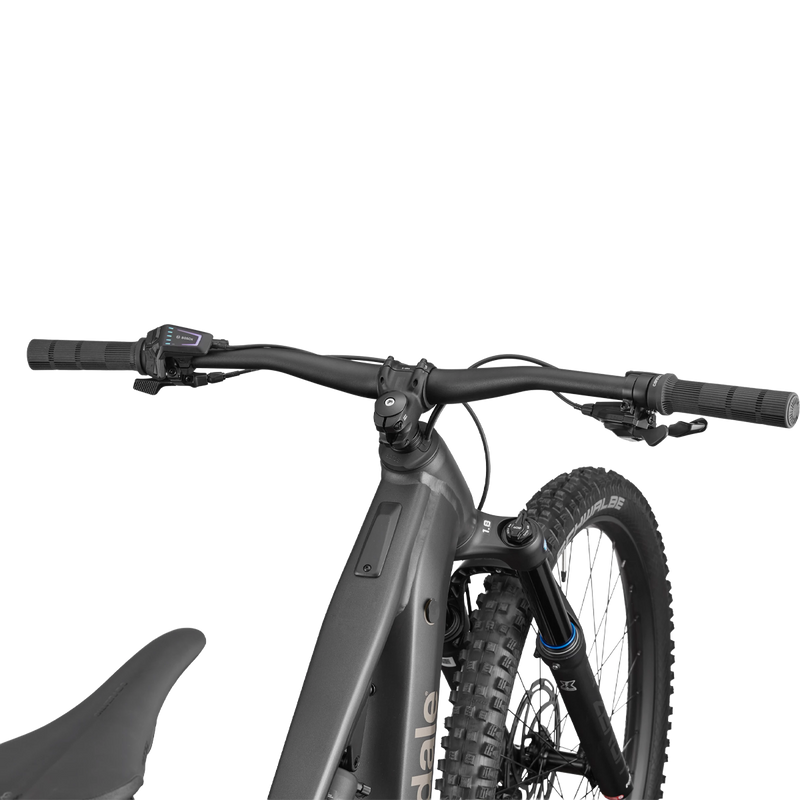

| Handlebar | Cannondale 3 riser, 6061 alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
| Stem | Cannondale 1, 6061 alloy, 35.0mm clamp, 40mm length, 0° |
| Grips | Cannondale TaperRidge |
| Saddle | WTB Silverado Medium |
| Seatpost | Cannondale DownLow dropper, internal routing, 34.9mm diameter — 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Range Extender Compatibility | Bosch PowerMore compatible |
* Specs subject to change
