Description

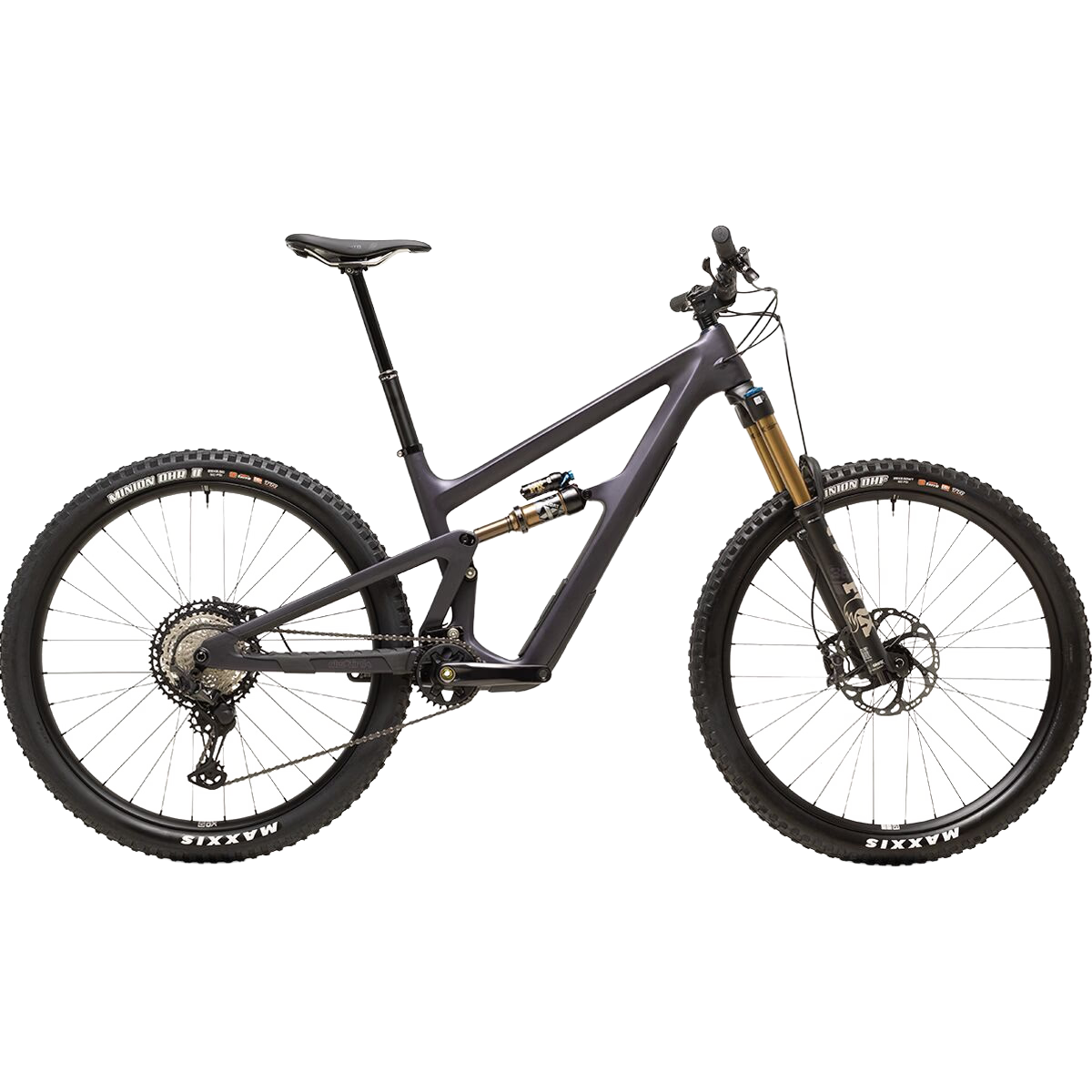

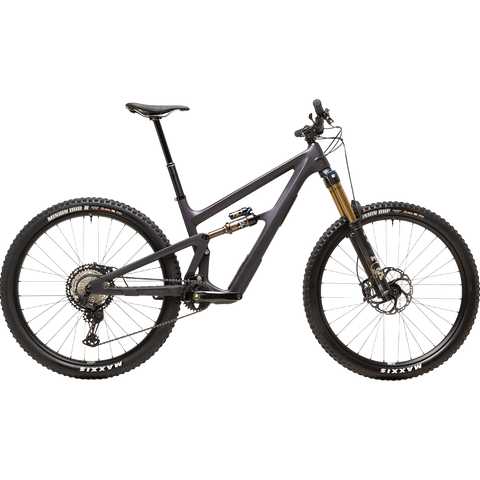

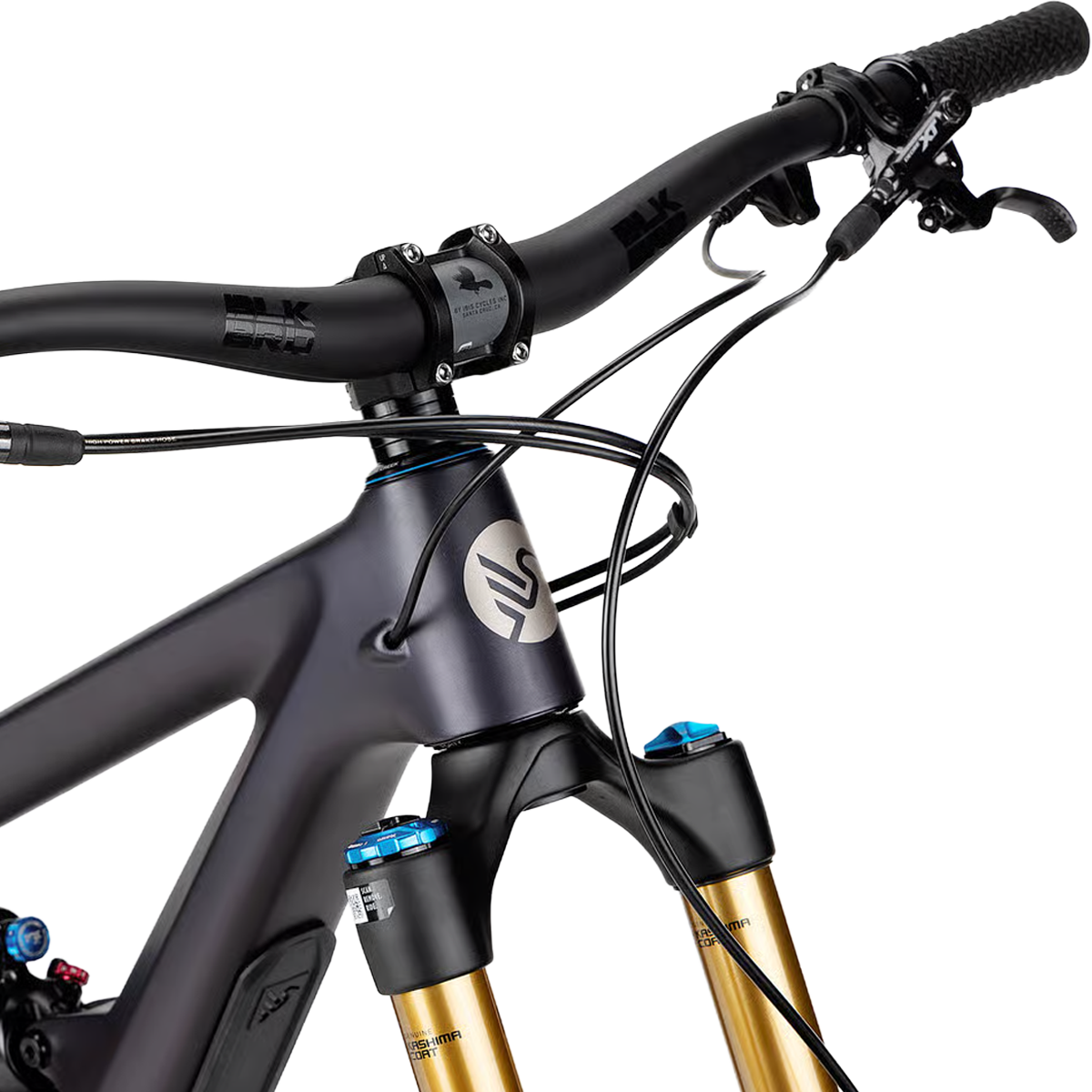

All-mountain bikes are great at many things. They are capable of tackling some of the gnarliest and nastiest terrain around, navigating technical descents, and climbing back to the top so you can do it all over again. The Ibis Ripmo V3 XT Bike is ready to take your trail riding to the next level. It starts with a carbon fiber frame that has 160mm of travel on the front and 150mm of travel on the rear. The frame has 29" wheels for the XM, L, and XL sizes and a 29" front with a 27.5" rear for the small and medium sizes. Internal frame storage makes storing your snacks, tubes, hand pump, and other riding essentials easy. The frame also features chainstay protection, downtube protection, fully tubed internal cable routing, and a Universal Derailleur Hanger.
- Carbon fiber frame with internal frame storage, internal cable routing, integrated frame protection, and a UDH
- Shimano XT 4-piston hydraulic disc brakes provide excellent stopping power and modulation
- Shimano XT 12-speed drivetrain performs well in all riding conditions

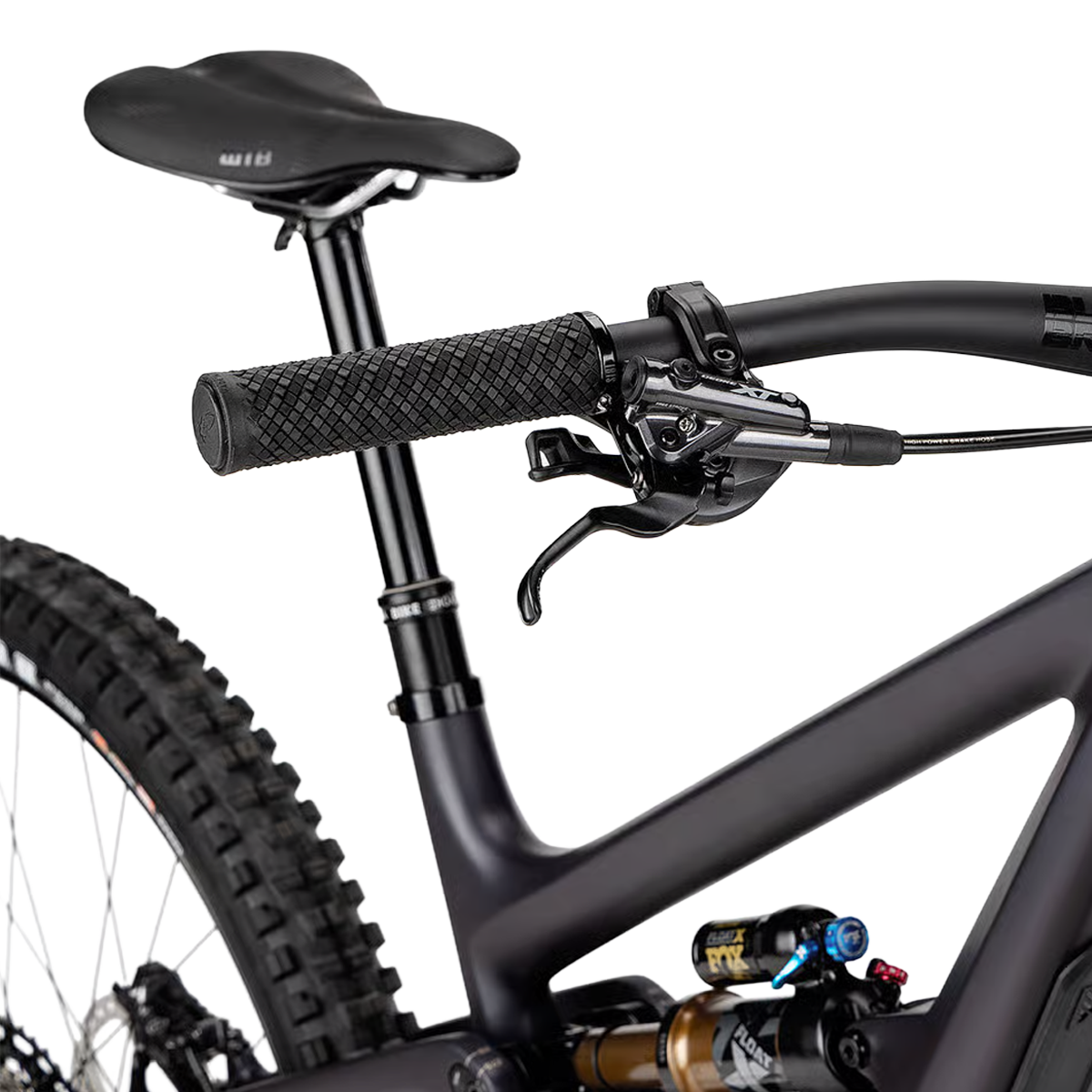

- Bike Yoke Revive Dropper Post quickly lifts and lowers your saddle with the press of a lever
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production
-
Drivetrain
Shimano XT M8100 -
Dropper Post
Bike Yoke Revive -
Fork
Fox Float 36 -
Frame
Carbon -
Tire Size
S–M: 29"(F)/27.5"(R) XM–XL: 29"(F/R)
| COMPONENT | PART |
|---|---|
| Version | V3 |
| Frame Material | Carbon front and rear triangle |
| Frame Weight | 7.6 lbs XM frame w/ Fox Float X |
| Fork | Fox Float 36, Factory Series, GripX, 160mm, 29" |

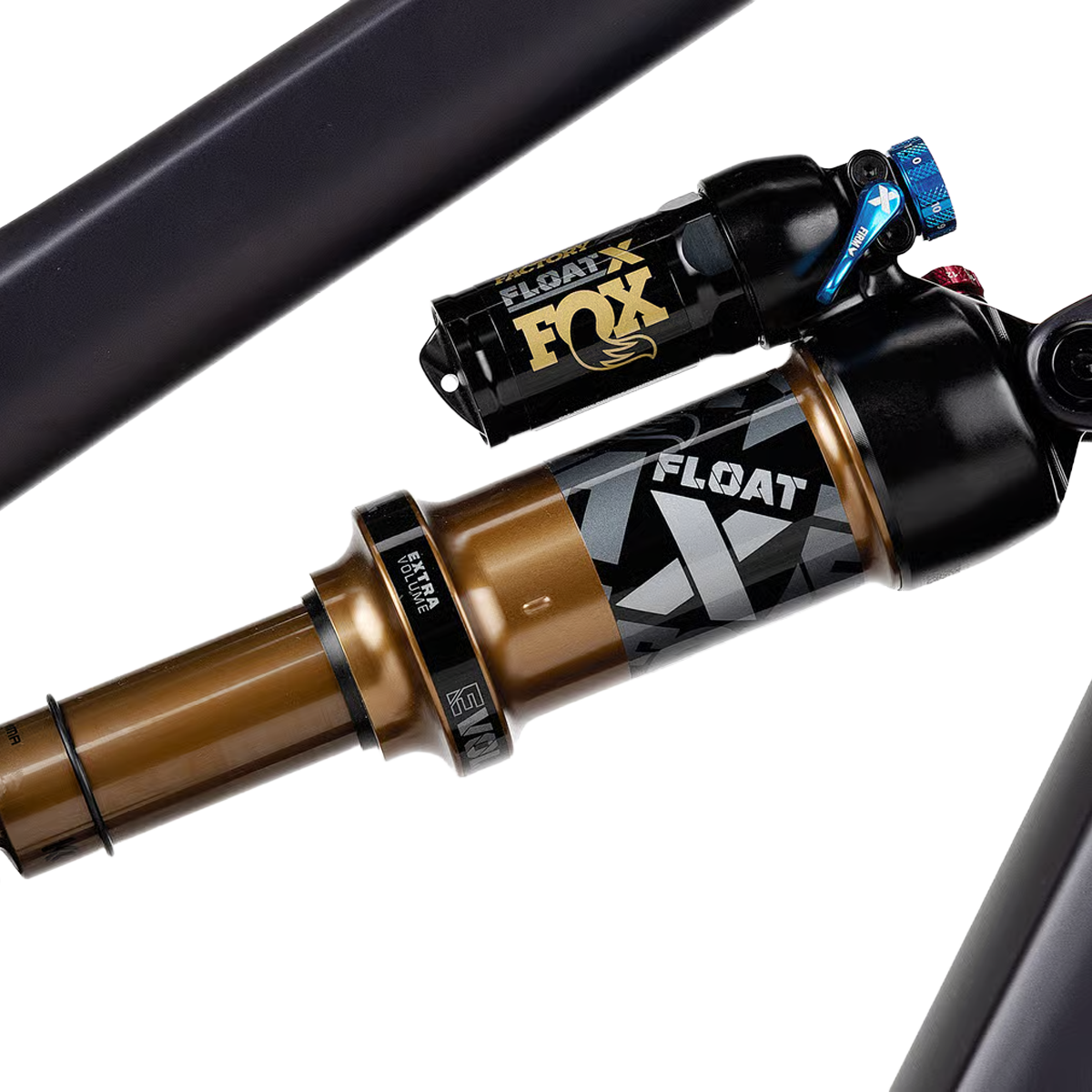

| Shock | Fox Float X, Factory Series, 2-Pos Adj. w/EVOL, 230mm x 60mm |
| Wheel Size | Size XM-XL: 29" wheels Size SM-MD: MX wheels (MX or 29" option in all sizes via flip chip) |
| Wheels | Blackbird Send Alloy, 32 Hole, Ibis Logo Hubs S-M, F: Send I 29" R: Send II 27.5" XM-XL, F: Send I 29" R: Send II 29" |
| Front Tire | Maxxis DHF, 29"x 2.5", Exo+ |
| Rear Tire | S-M: Maxxis DHR2, 27.5" x 2.5", Exo+ XM-XL: Maxxis DHR2, 29" x 2.5", Exo+ |
| Tire Clearance | 2.5" |
| Front Travel | 160mm |
| Rear Travel | 150mm |
| Brakes | Shimano XT, M8120, 4-Piston |
| Rotors (F/R) | Shimano SM-RT86, 203mm/180mm |

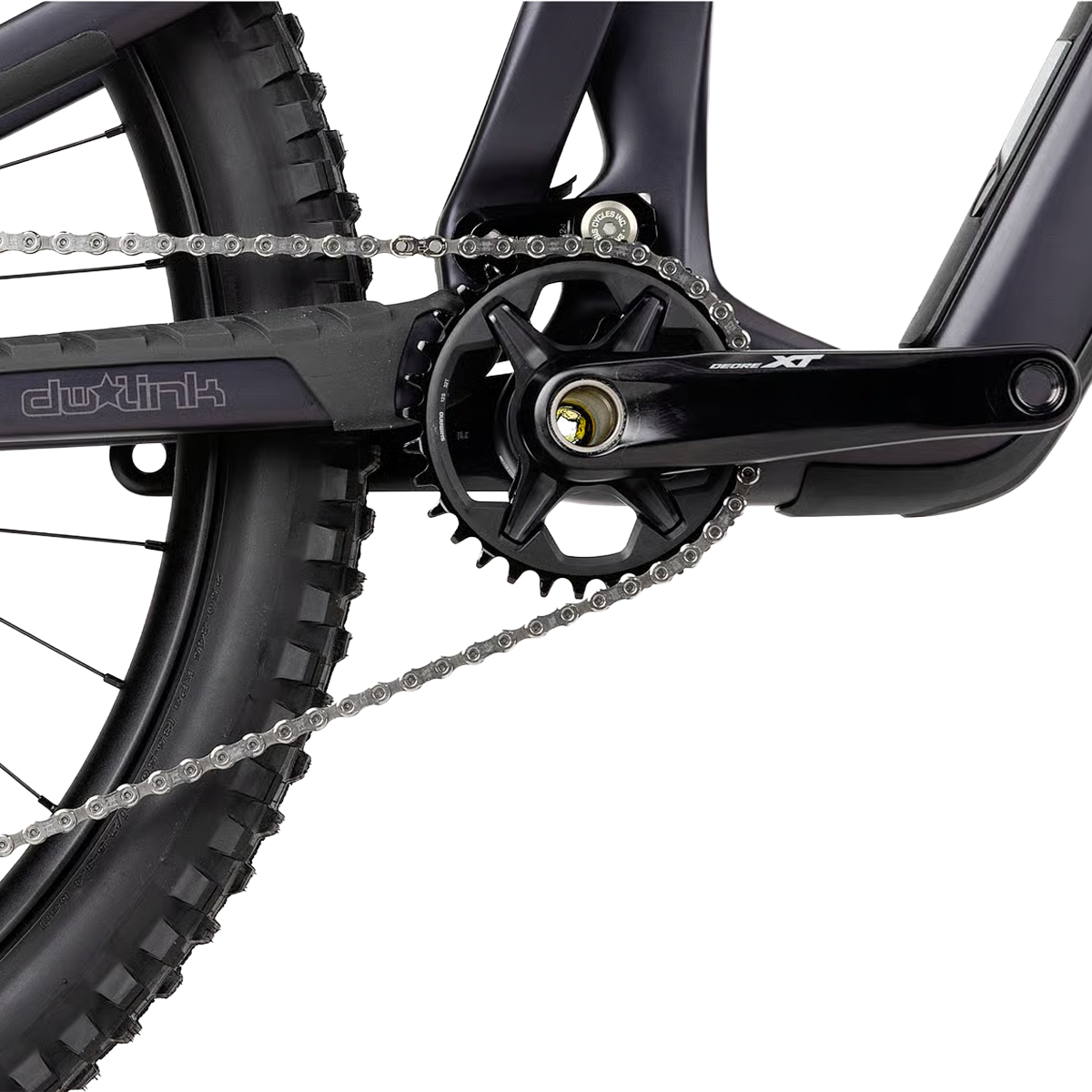

| Crankset | Shimano XT, M8120, 24mm Spindle, 30T Alloy Ring, S-M: 165mm, XM-XL: 170mm |
| Bottom Bracket | Shimano XT MT800 |

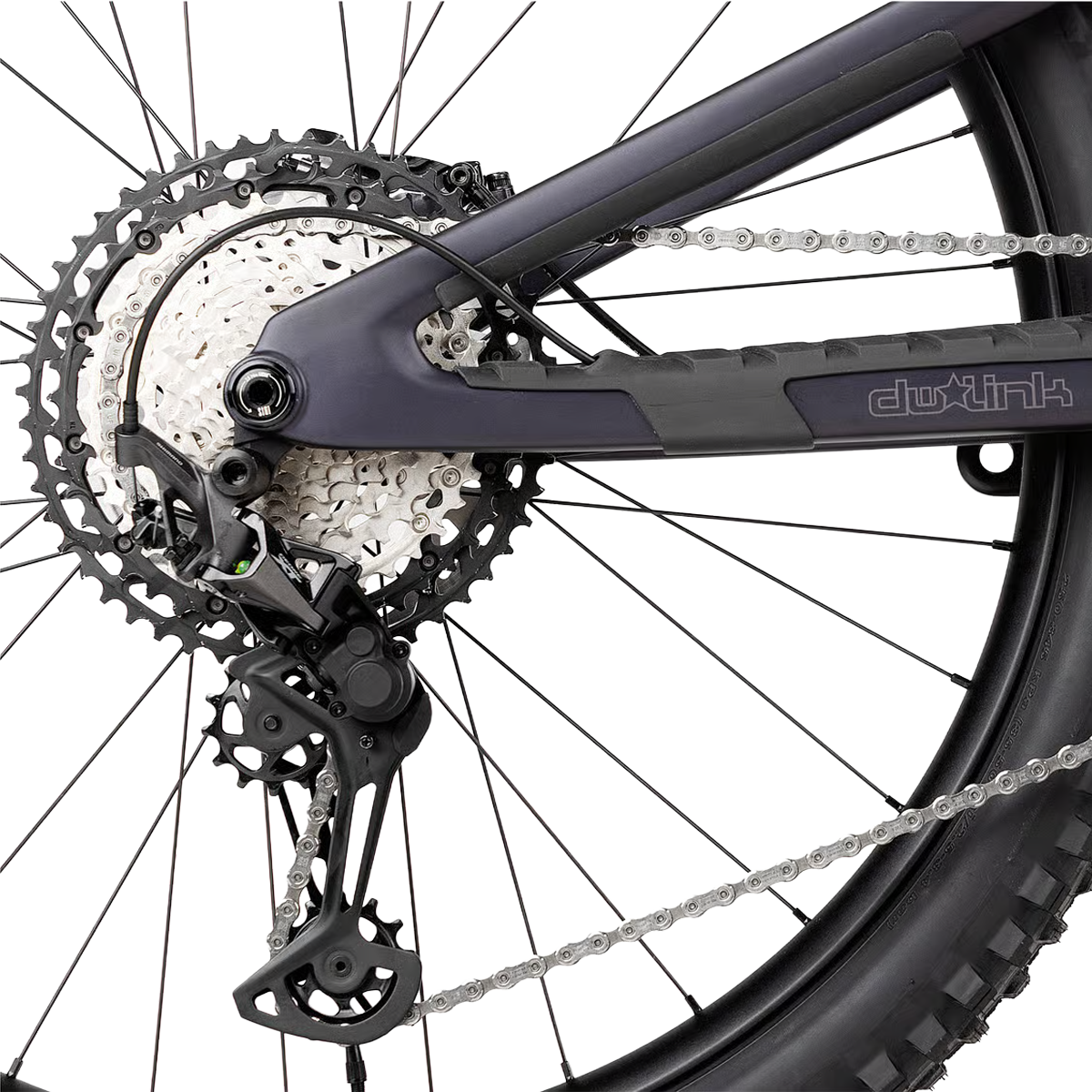

| Rear Derailleur | Shimano XT, M8100, Shadow Plus |
| Shifter | Shimano XT, M8100 |
| Cassette | Shimano XT, M8100, 10-51T |
| Chain | Shimano XT M8100 |
| Headset | Cane Creek 40 ZS44/ZS56 |
| Grips | Lizard Skin Charger Evo |
| Handlebar | Blackbird HiFi, 35mm, 800mm |
| Stem | Blackbird, 35mm, S-M: 35mm, XM-XL: 50mm |
| Seatpost | Bike Yoke Revive Dropper, S: 125mm, M: 160mm, XM: 185mm, L-XL: 213mm |
| Seatpost Diameter | 34.9mm |
| Saddle | WTB Silverado, Fusion, 142mm |
| Bottle Mounts | 22oz bottle on size small, 26oz on all other sizes |
| Frame Storage | Large Internal frame storage with easy access door |
| Frame Storage Bag | Sustainably sourced internal frame bags produced in partnership with Cotopaxi |
| Colors | Heckleberry Purple or Olive Swamp Monster |
| Sizes | Small (S), Medium (M), Extra medium (XM), Large (L) and Extra Large (XL) |
* Specs subject to change
