Description

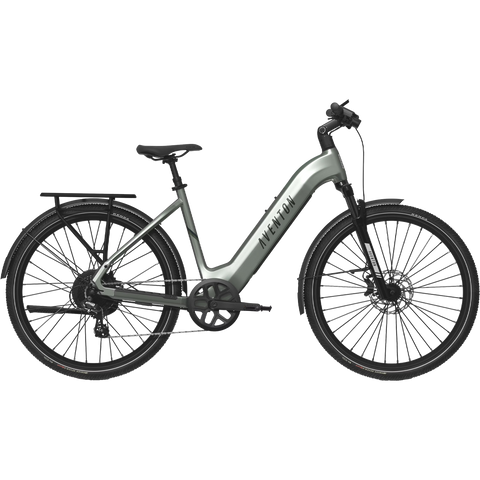

Take your commutes to the next LEVEL. The Aventon Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Aventon's ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3.
- Enhanced Security meets Advanced Technology: The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock, Geofencing and Passcode safeguards your Level 3 and deliver an ultimate peace of mind. When cruising, you can rely on GPS tracking, 4G connection and cloud synchronization to get your bike stats in real time*
- Remote Lock and Geofencing: The smart remote locking functionality lets you immobilize your bike right from the Aventon app. And the Geofencing feature lets you define the areas allowed and the distances prohibited
- Startup Password and Keyless Battery: Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there's one less key on your ring, so you can just hop on and bop around
- Electronic Rear Wheel Lock: Easily activate a locking mechanism that restricts the rear wheel from rotating. This adds a layer of security when leaving your bike unattended
- Rack and Fenders: Pre-installed fenders will protect you from the elements, rain or shine, while an attached rear rack means you can transport all of your essentials, whether you're heading out for a picnic or heading home from work
- Pedal Assist and Throttle: Five levels of pedal assist mean you're in charge of how much or how little electric assist you get from your ebike, while a throttle will propel you at speeds up to 20 MPH, keeping you moving when pedaling is just an afterthought
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
*Certain features of this electric bike require a 4G data connection. A complimentary 4G connection subscription is included for the first year, beginning from the product service registration date. After the first year, a paid 4G connection subscription will be required to maintain access to these services. Please note that data subscription fees and terms may apply
-
Battery
Removable Internal Lithium-ion, 36V -
Max Torque
60Nm -
Motor
36V, 500W (sustained), 864W (peak) -
Range
Up to 70 Miles -
Top Speed
Class 2: Top Speed 20 mph
Component | Part |
---|---|
FRAME | 6061 Aluminum, Gravity Cast Front Triangle |
FORK | Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset |
REAR SPACING | 142mm |
FORK SPACING | 110mm |
FRAME STYLE | Step-Through |
EBIKE CLASS | Class 2 Ebike |
PEDAL ASSIST | 3 Levels (with Ride Tune Customization) |
MOTOR | 36V, 500W (sustained), 864W (peak) |
MOTOR TORQUE | 60Nm |
DISPLAY | Aventon BC280 |
BATTERY | Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells |
BATTERY WEIGHT | 8.7lbs |
CONTROLLER | 36V, 24A |
THROTTLE | Aventon LH Handlebar Mounted |
SENSORS | Double Sided Bottom Bracket Torque Sensor |
CHARGER | 36V Output: 42V/ 4A |
CHARGING TIME FROM 0% TO 100% | 5 hours |
LIGHTS | Front and rear lights integrated |
SPEED | Class 2 - Up to 20 mph |

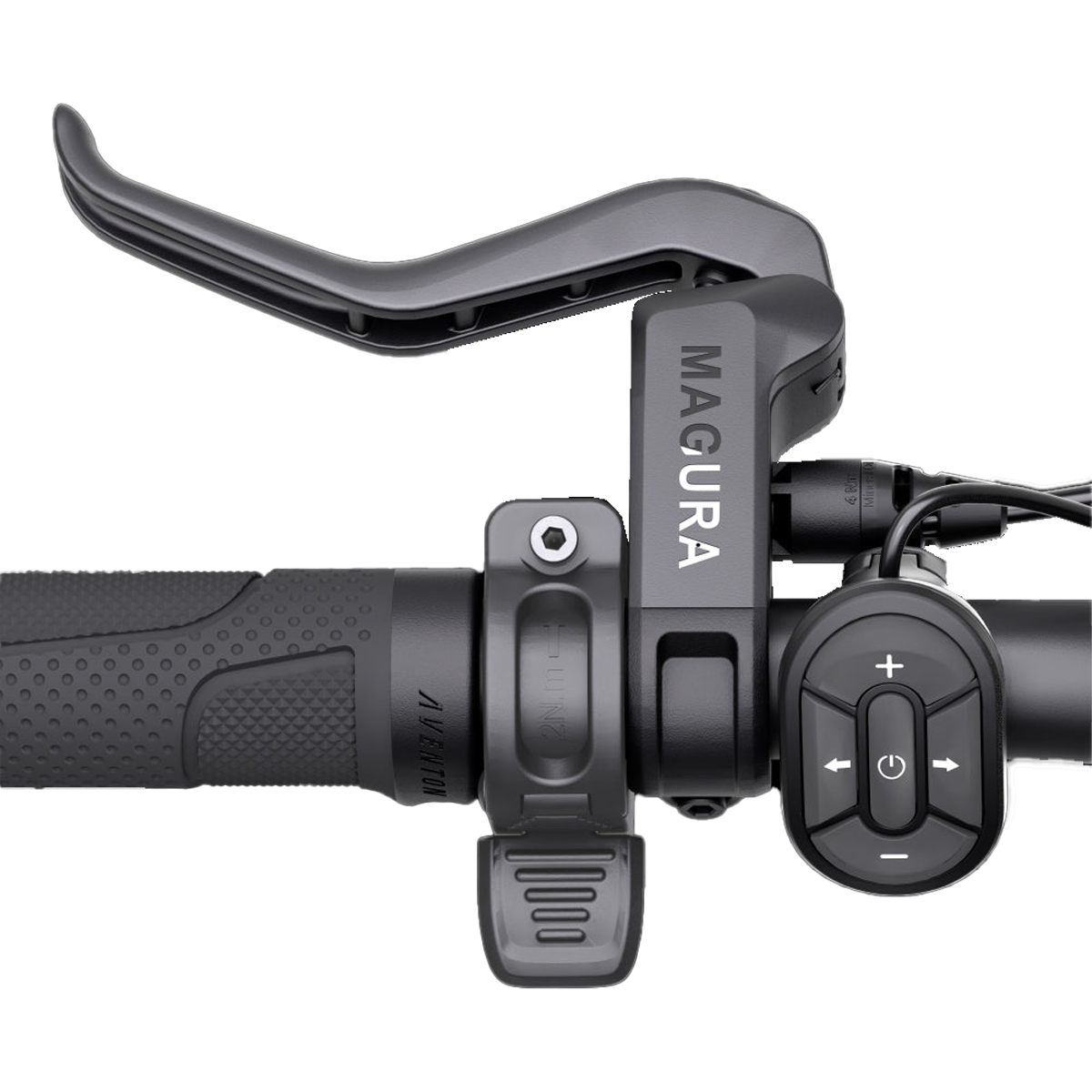

FRONT BRAKE | Magura AT-2 Hydraulic disc brake |
REAR BRAKE | Magura AT-2 Hydraulic disc brake |
FRONT BRAKE ROTOR | Magura MDR-A 180mm 6 Bolt Rotor |
REAR BRAKE ROTOR | Magura MDR-A 180mm 6 Bolt Rotor |
REAR DERAILLEUR | Shimano Altus RD-M310 |
SHIFTER | Shimano 8 Speed Trigger SL-M315-8R |
CHAIN | 7/8 speed 120L |
CASSETTE | 12-32T / 8 Speed Shimano CS HG200-8 |
CHAINRING | 48T |
CHAINRING BCD | 104 |
CRANKSET | 3pc, 170mm crank arm |
BOTTOM BRACKET | Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm |
PEDALS | 9/16" Composite Platform |
SADDLE | Aventon Saddle |

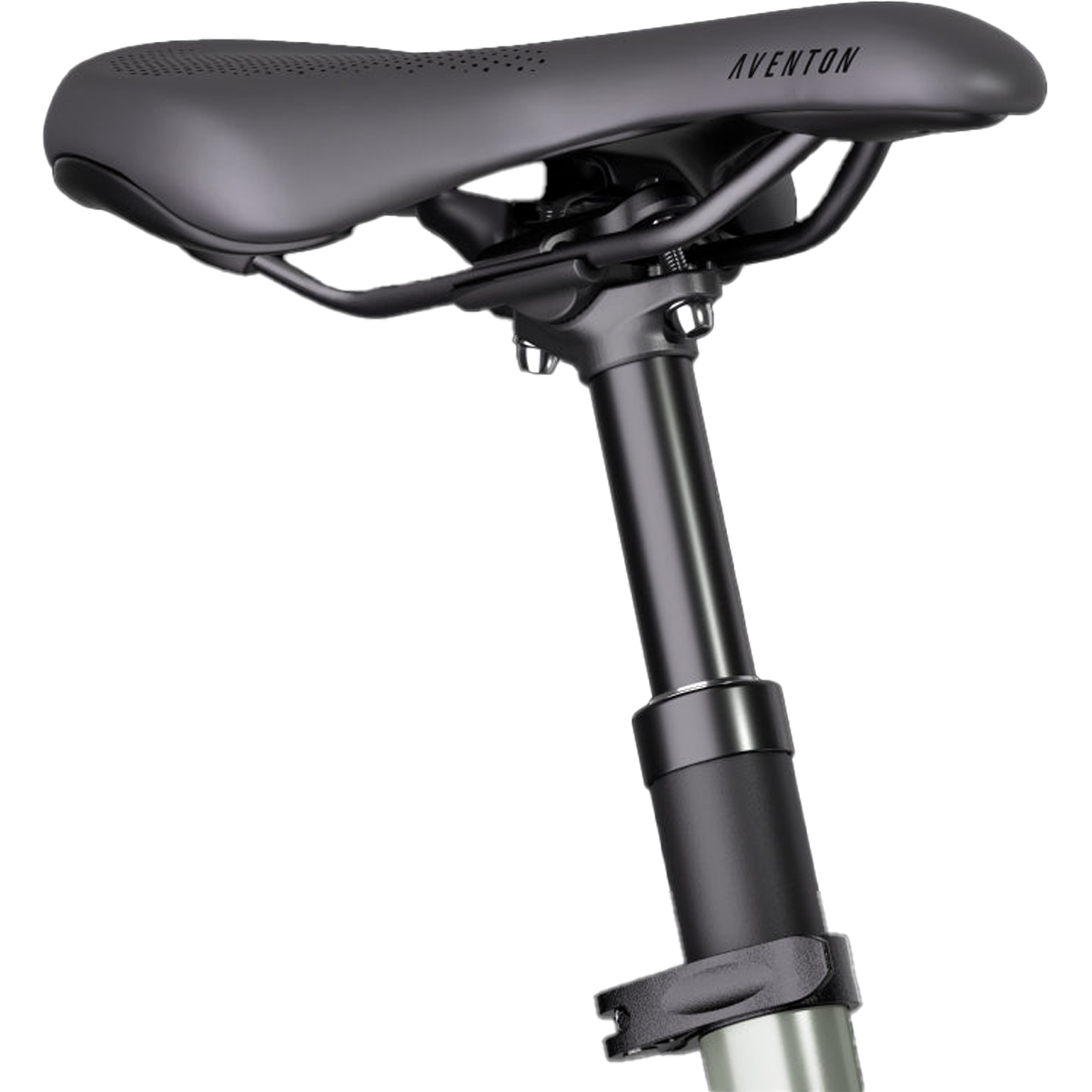

SEATPOST | 30.9mm Aventon Suspension Seatpost with 50mm travel |
SEATPOST CLAMP | 34.9mm |
HANDLEBARS | Aluminum 31.8mm, 680mm |
GRIPS | Aventon Lock on grips |
HEADSET | Sealed Bearing Headset |
FRONT WHEEL | 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black |
REAR WHEEL | 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black |
TIRES | Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20 |
REAR RACK WEIGHT LIMIT | 60lbs |
WEIGHT | 67lbs |
TOTAL WEIGHT LIMIT | 300 lbs |
WATER RESISTANCE | IPX4 |
RANGE | Up to 70 Miles |
BATTERY SAFETY CERTIFICATIONS | Certified to UL 2271 |
SAFETY CERTIFICATIONS | UL Safety Certified UL 2849 |
* Specs subject to change
