Description

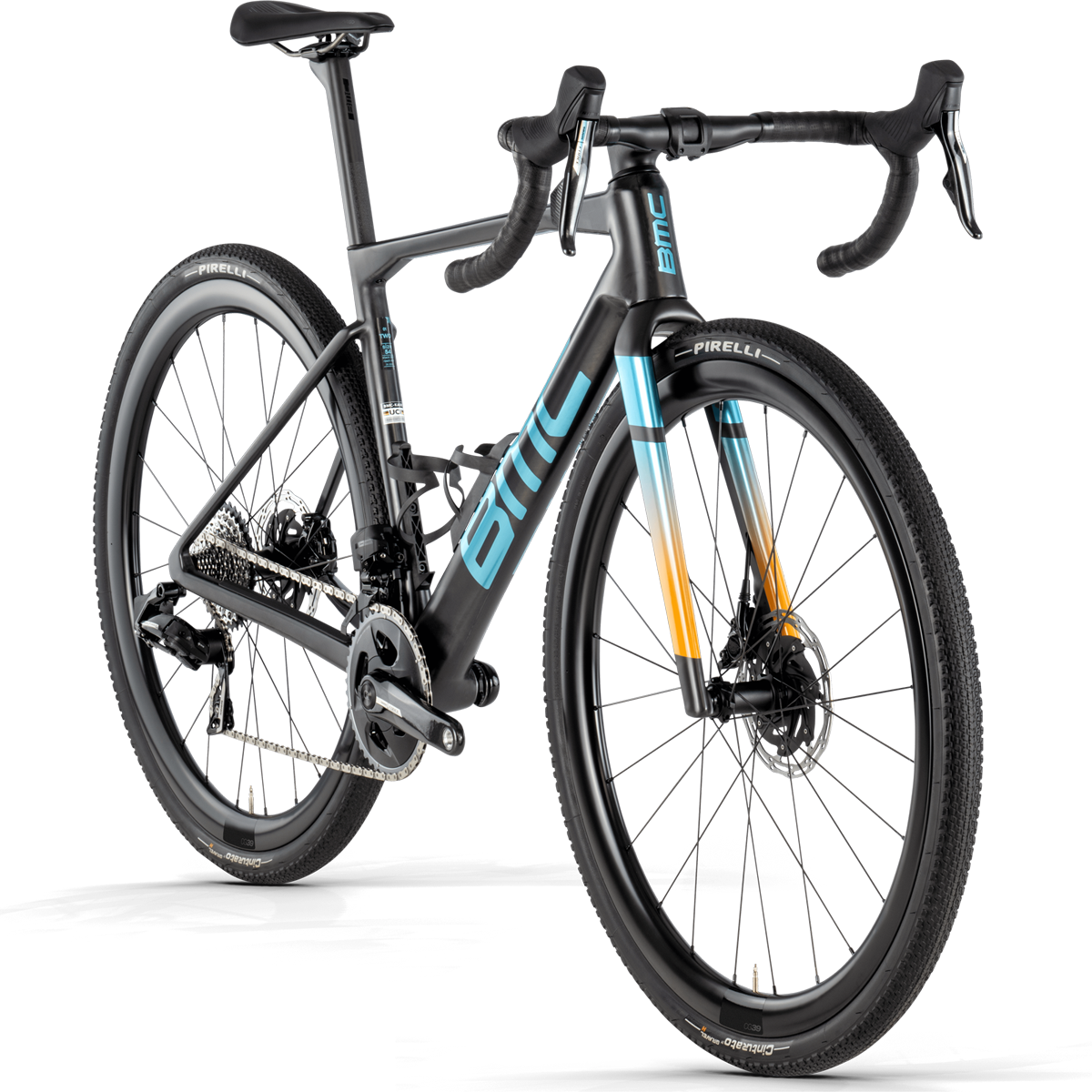

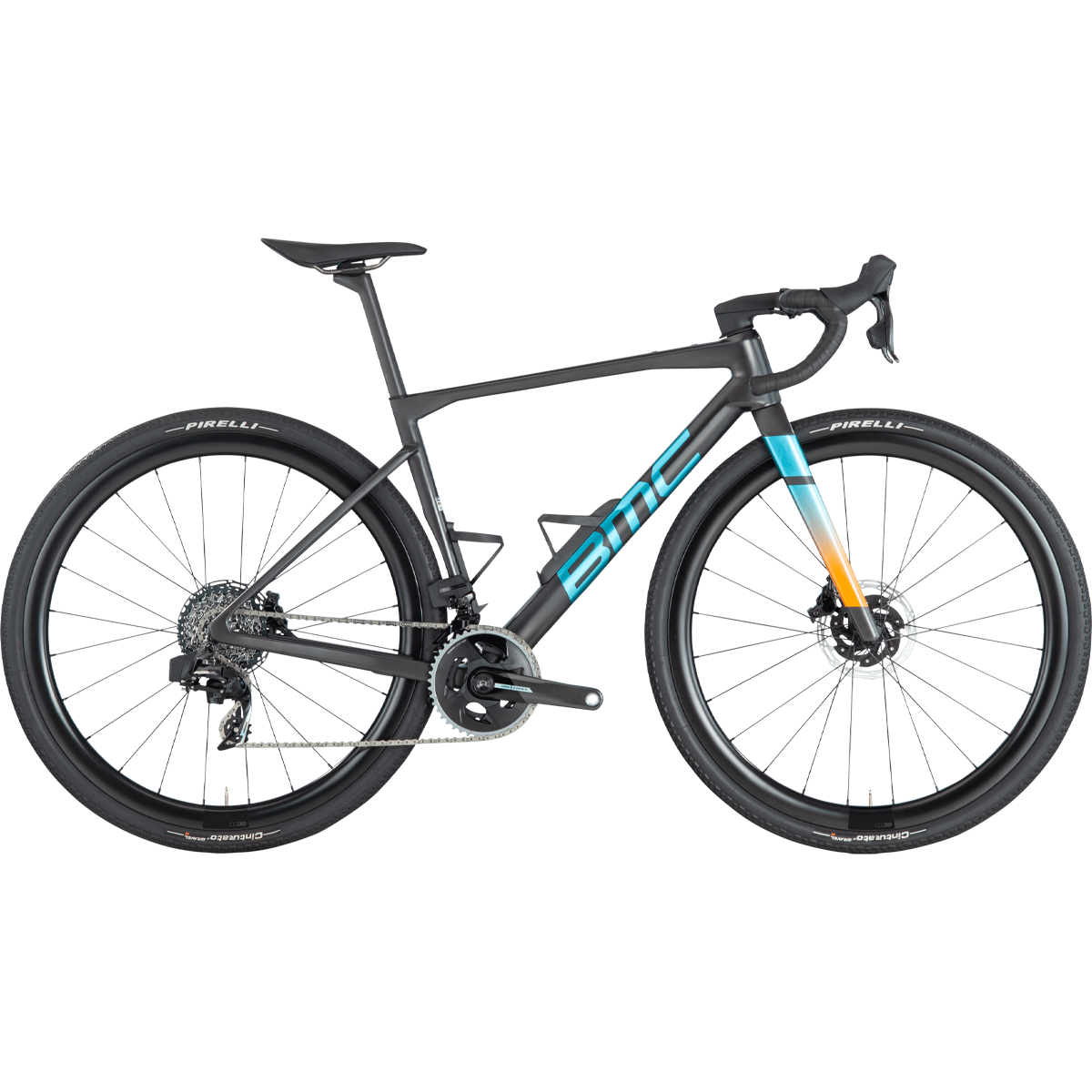

Kaius is a premium carbon gravel bike built to be your elite race companion for all terrains. The unprecedented carbon layup and gravel-specific geometry ensure the perfect balance of stiffness, lightweight, and compliance for optimal traction on loose surfaces, front-end stability, and unmatched climbing prowess. Harnessing the precision and performance of BMC's renowned leading road technologies, Kaius is a race machine tuned to the gravel wavelength with the engineered Kaius fork, BMC's signature ICS2 stem and conventional bar, TCC Race compliance, compatibility with 1x and 2x drivetrains and up to 44 mm of tire clearance.
- SRAM FORCE eTAP AXS Wide Drivetrain
- BMC CG39 Carbon Wheelset
- ICS2 Stem / Easton Carbon Bar
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
-
Brakes
SRAM Force eTap -
Crank
SRAM Force DUB WIDE -
Drivetrain
SRAM Force eTap -
Frame
Premium Carbon -
Wheels
Pirelli Cinturato Gravel H
| COMPONENT | PART |
|---|---|
| Frame | Kaius 01 Premium Carbon with Aerocore Design, ICS Technology Stealth Cable Routing, Stealth Dropout Design, TCC Race Compliance Level, Flat Mount Disc, 12 x 142mm Thru-Axle |

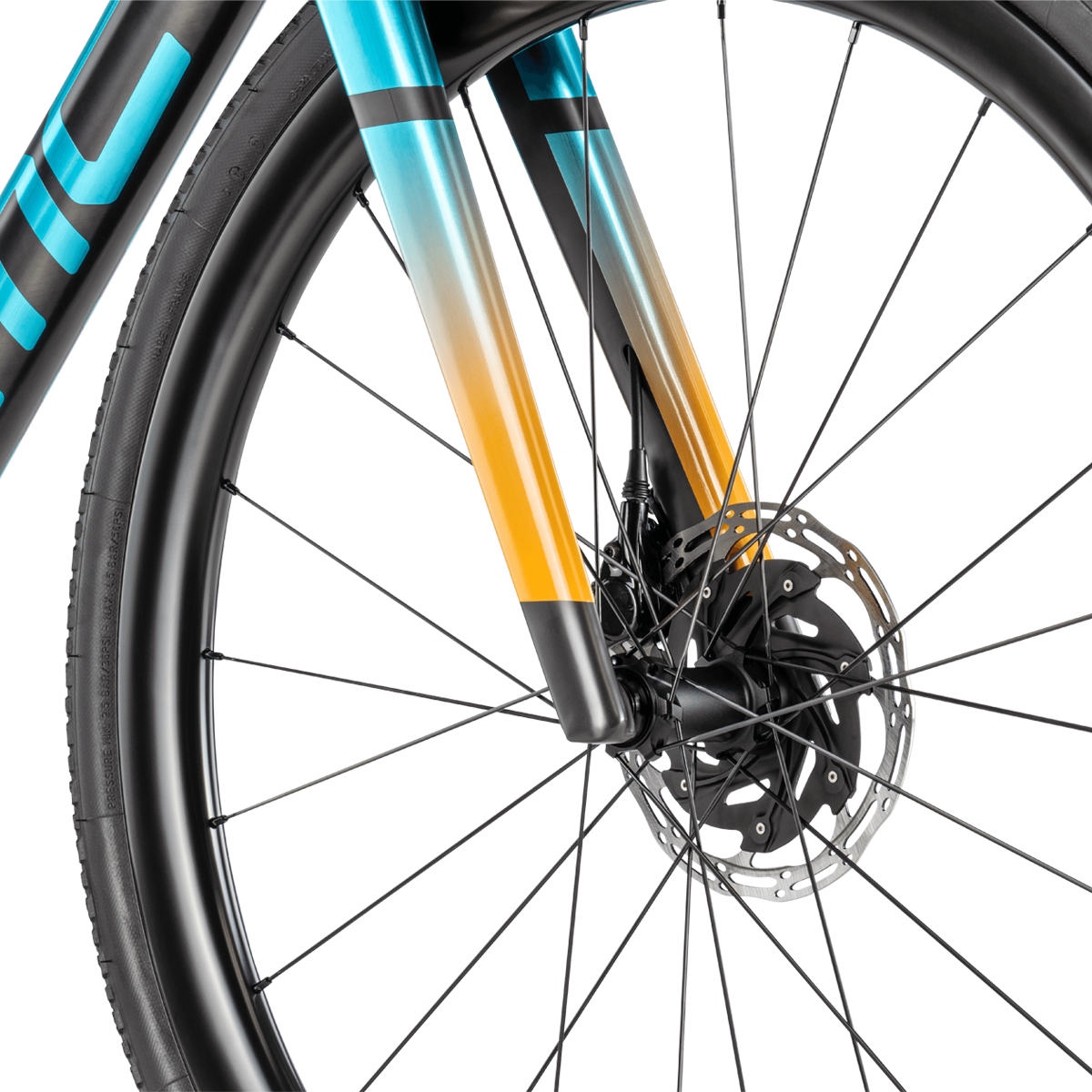

| Fork | Kaius 01 Premium Carbon, ICS Technology, Stealth Cable Routing, TCC Race Compliance Level, Stealth Dropout Design, Flat Mount Disc, 12 x 100mm Thru-Axle |

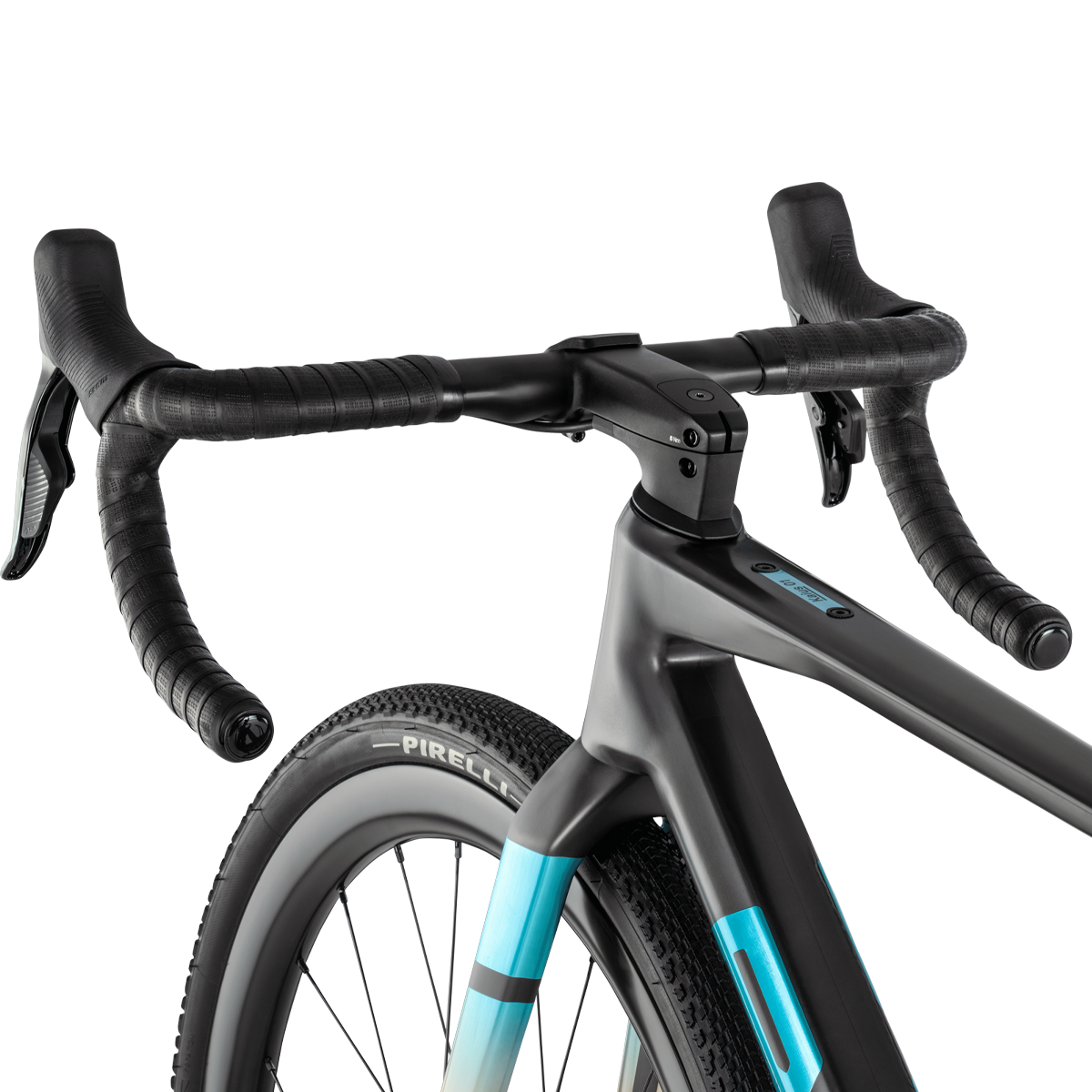

| Stem | BMC ICS2, Integrated Cockpit System Technology |
| Handlebar | Easton EC70 AX Carbon, 120mm drop, 80mm reach, 16° flare |
| Seatpost | Kaius 01 Premium Carbon D-Shaped Seatpost, 15mm Offset, D-Fender Compatible |
| Saddle | Fizik Vento Argo R3, 140mm |

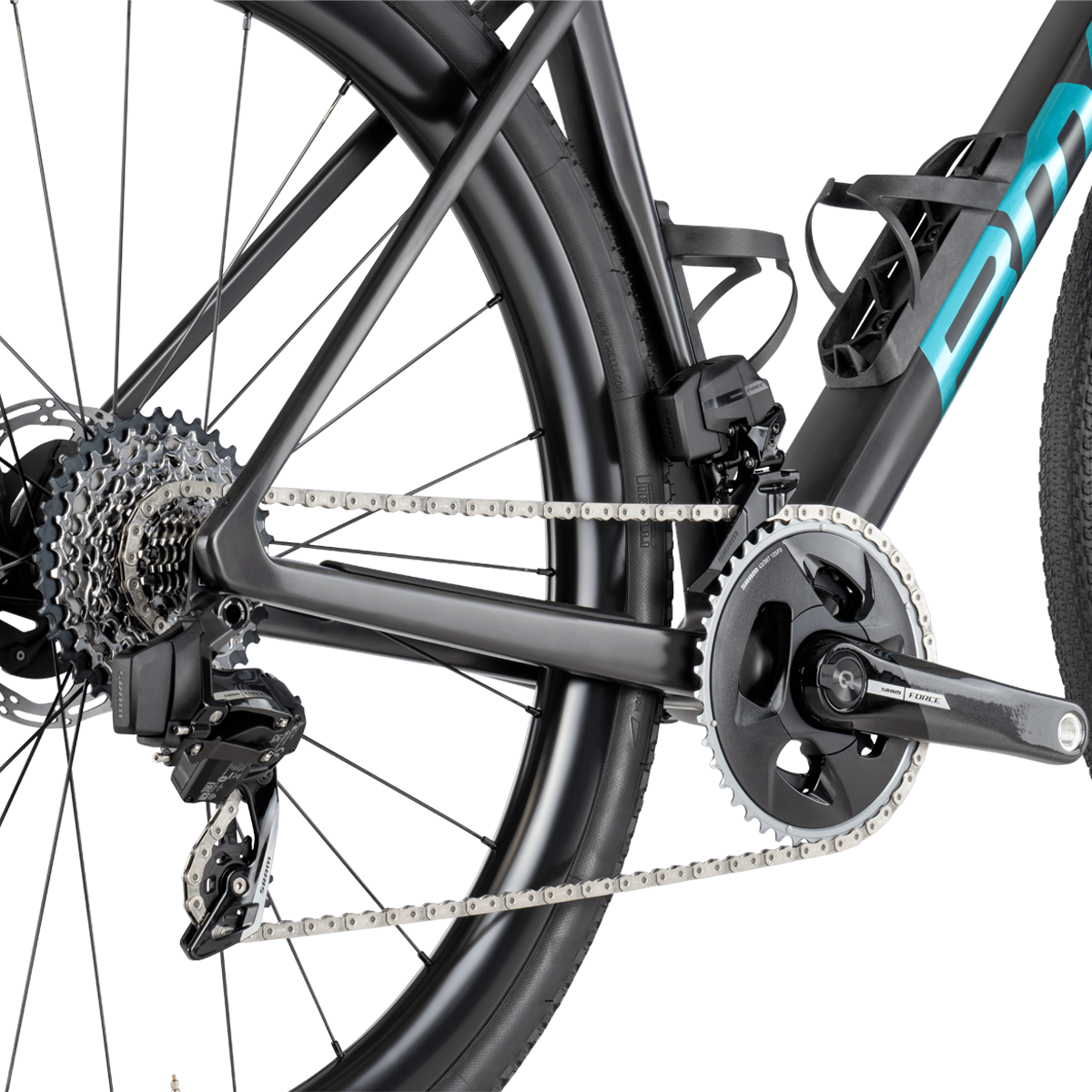

| Crankset | SRAM Force DUB WIDE |
| Chainrings | 43-30T |
| Power Meter | SRAM Force DUB WIDE Power Meter |
| Cassette | SRAM Force AXS (XG-1270) |
| Cassette Size | 10-36T |
| Chain | SRAM Apex |
| Front Derailleur | SRAM Force eTap AXS WIDE |
| Rear Derailleur | SRAM Force eTap AXS WIDE |
| Shifters | SRAM Force eTap AXS HRD |
| Gears | 2 x 12 |
| Bottom Bracket | PF86 Bottom Bracket |
| Brake Levers / Calipers | SRAM Force eTap AXS HRD |
| Rotors | SRAM Paceline, Centerlock |
| Rotor Size (F/R) | 160 / 160mm |
| Rims | CG39 39mm Rim Height, 25mm Inner Width |
| Hubs (F/R) | CG 39, Star Ratchet System, Straightpull Design, Center Lock |
| Tires | Pirelli Cinturato Gravel H, 40mm |
| Tubeless Information | Tubeless Ready Rims, Tubetype Tires |
| In the Box | Aerocore Bottle Cages |
| Tire Clearance | 44mm measured tire |
| Weight without Pedals | 8.3 Kg |
| ASTM Classification | Level 2 |
| System Weight Limit | 120kg |
* Specs subject to change
