Description
The Aventon Aventure 3 is the ultimate Ebike for adventure seekers, combining rugged performance with cutting-edge technology. Featuring 4" fat tires, a suspension fork, and an added suspension seatpost, the Aventure is built to conquer any terrain with ease. Now equipped with ACU technology that offers 4G/GPS capabilities and advanced anti-theft features, the Aventure 3 keeps you connected and your bike secure so the only thing you have to worry about is where your bike will take you next. Its powerful 750W motor, 65 miles of range, and Ride Tune customization ensures you can get where you want to go, with exactly as much power as you need to get there. No matter where you want to explore, the Aventure is ready to take on the challenge. The Aventure 3 ships as a Class II ebike, with pedal assist and throttle. The Aventure 3 will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I ebikes or throttles are prohibited. Max range is determined using PAS 1 on flat terrain with a rider weight of 160 lbs

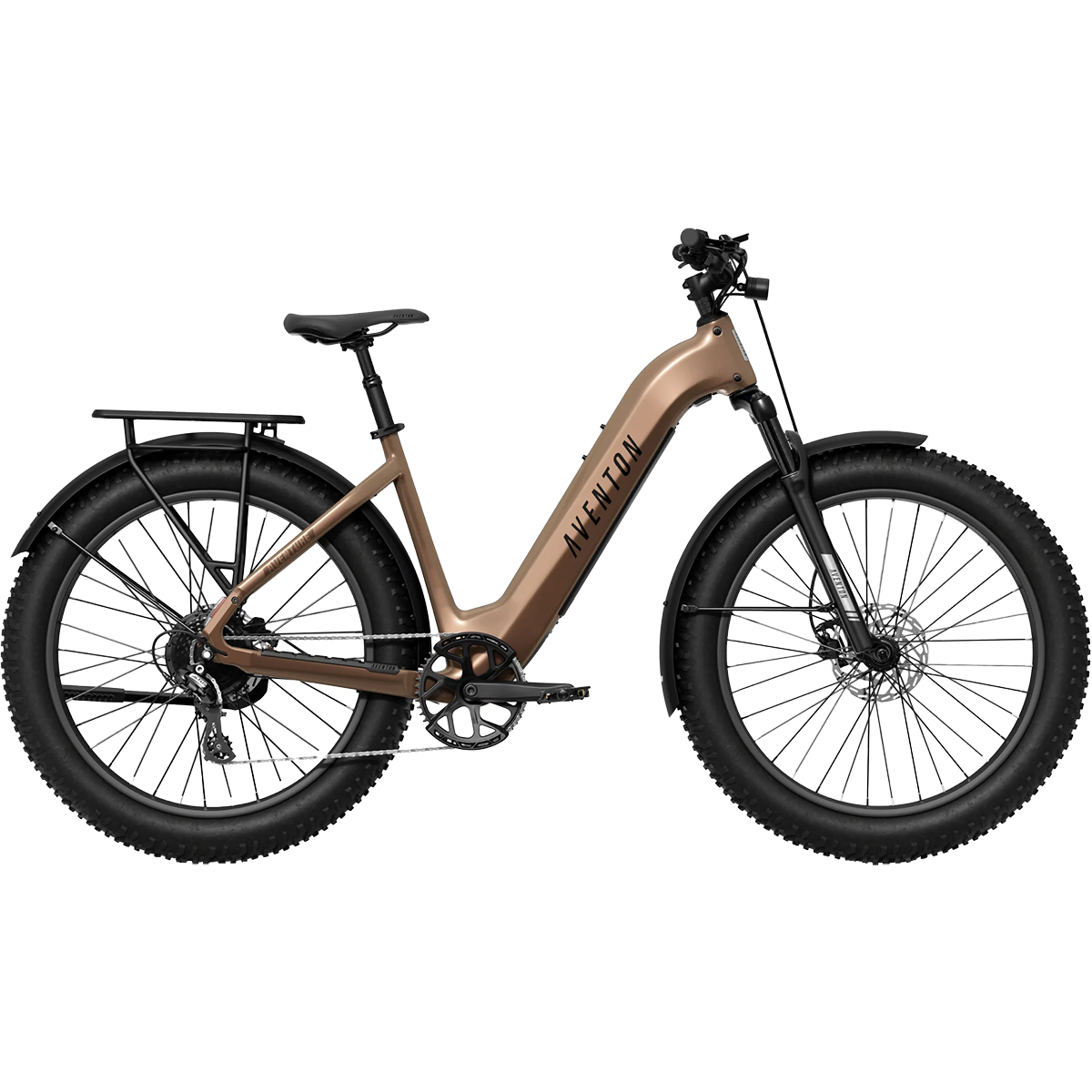

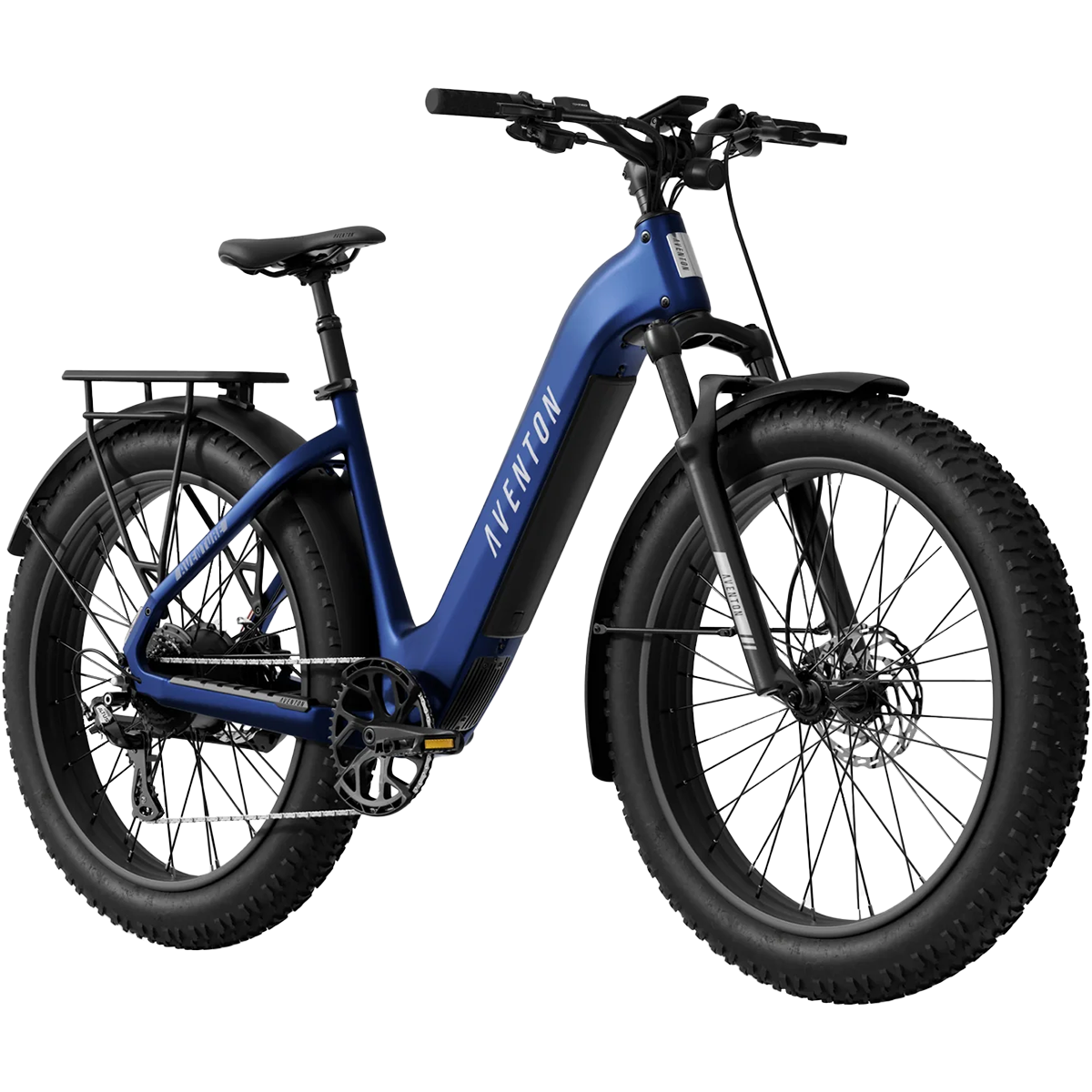

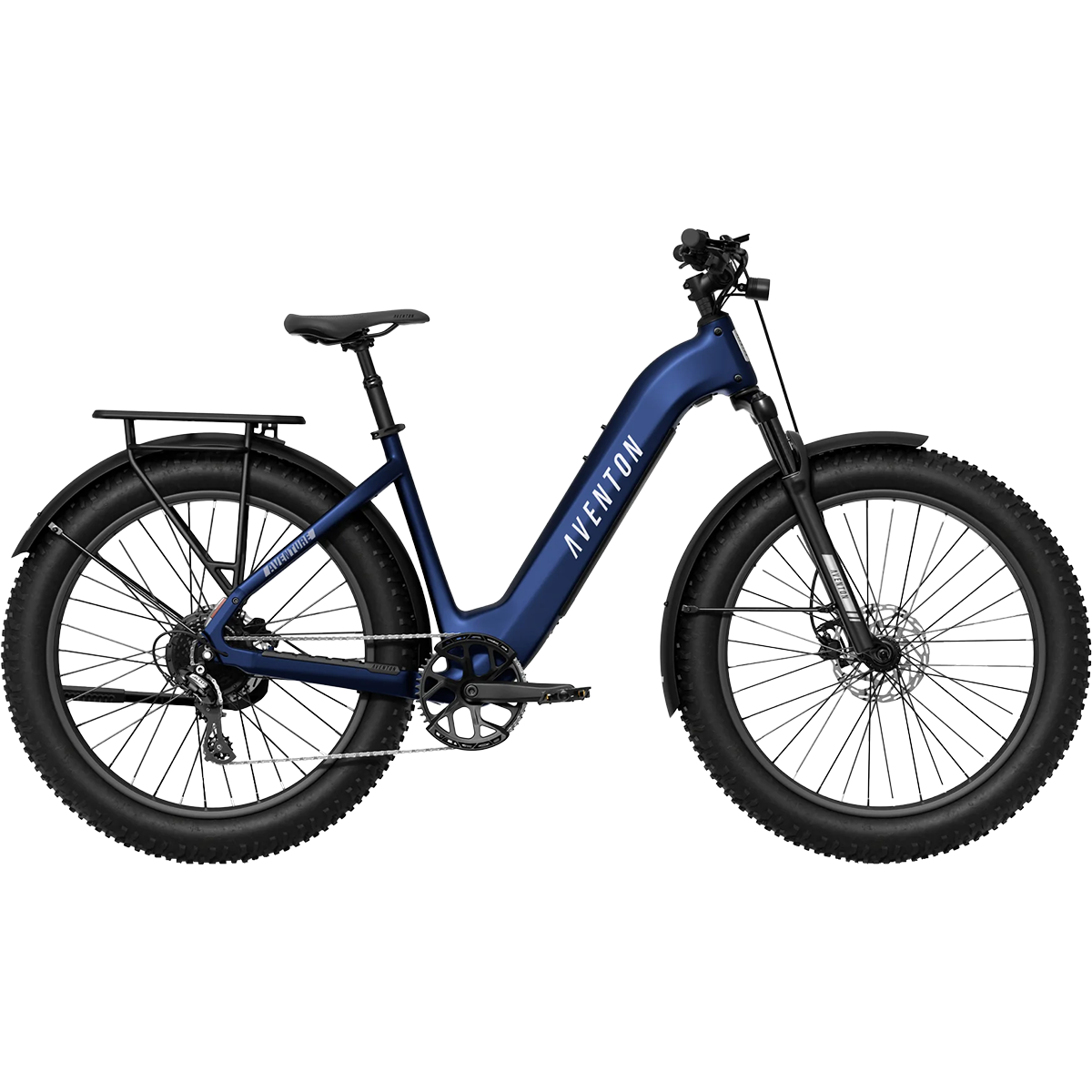

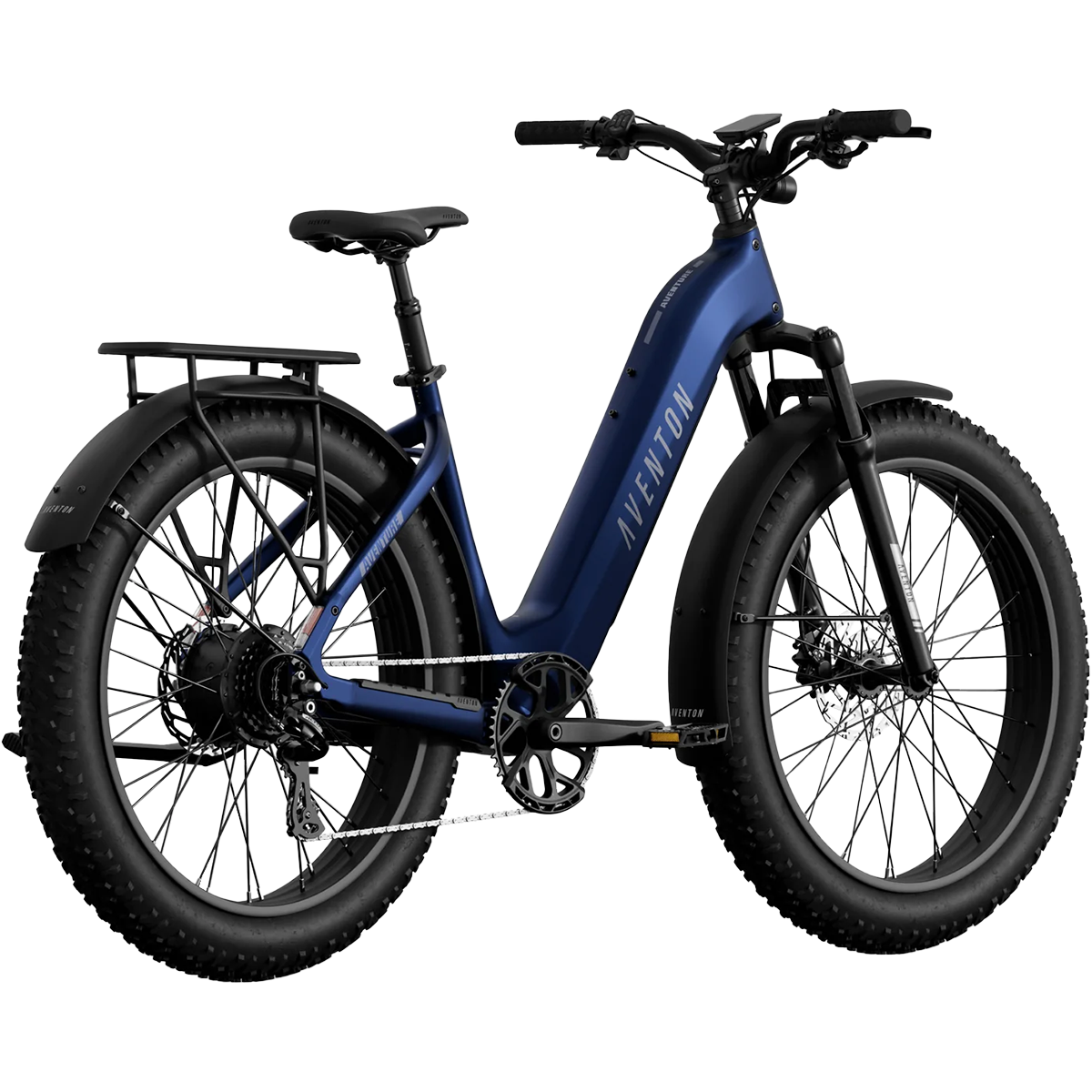

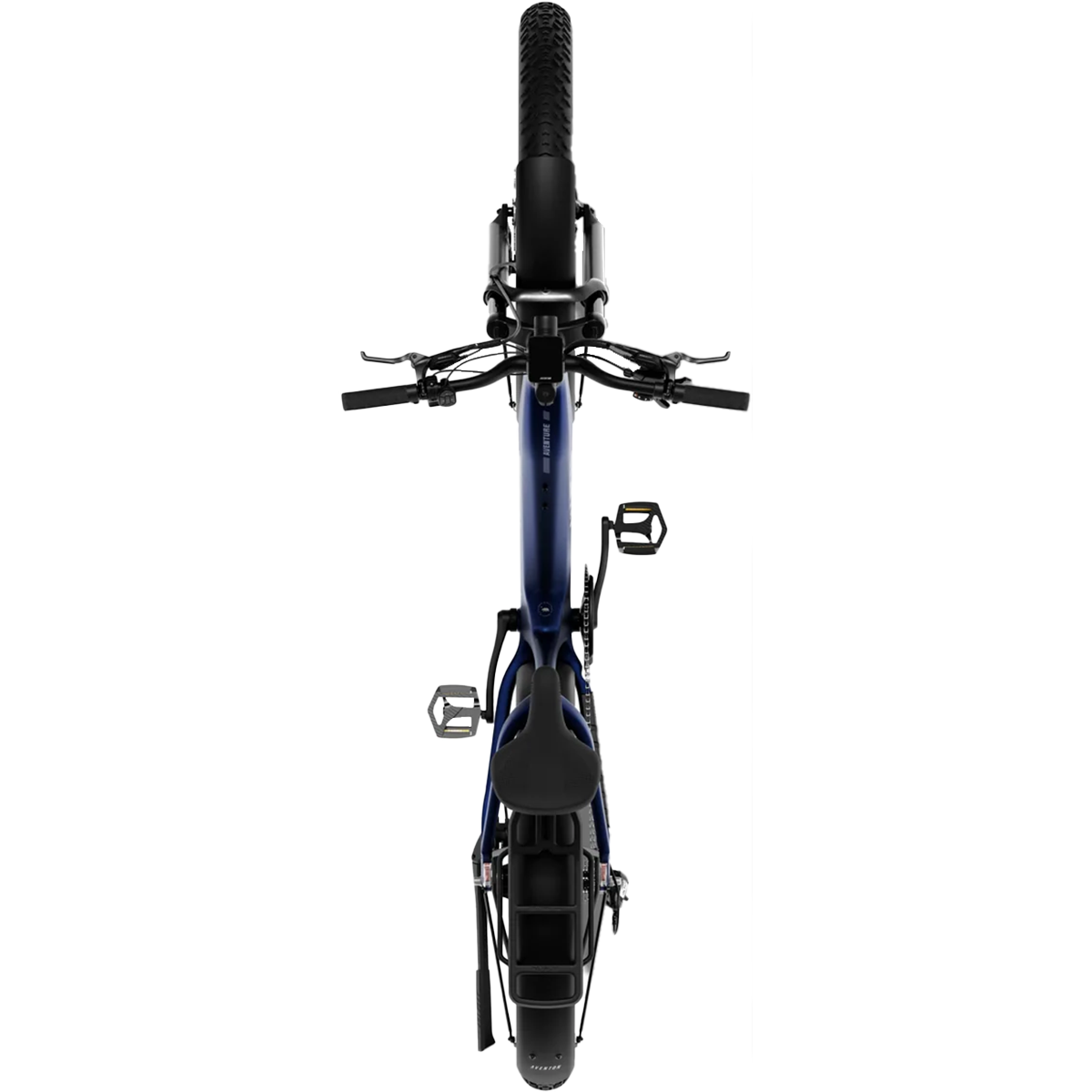

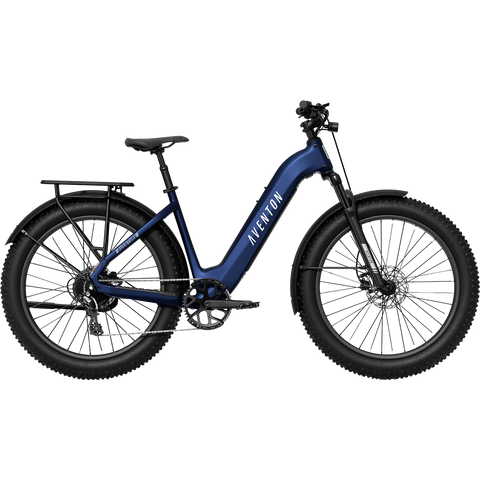

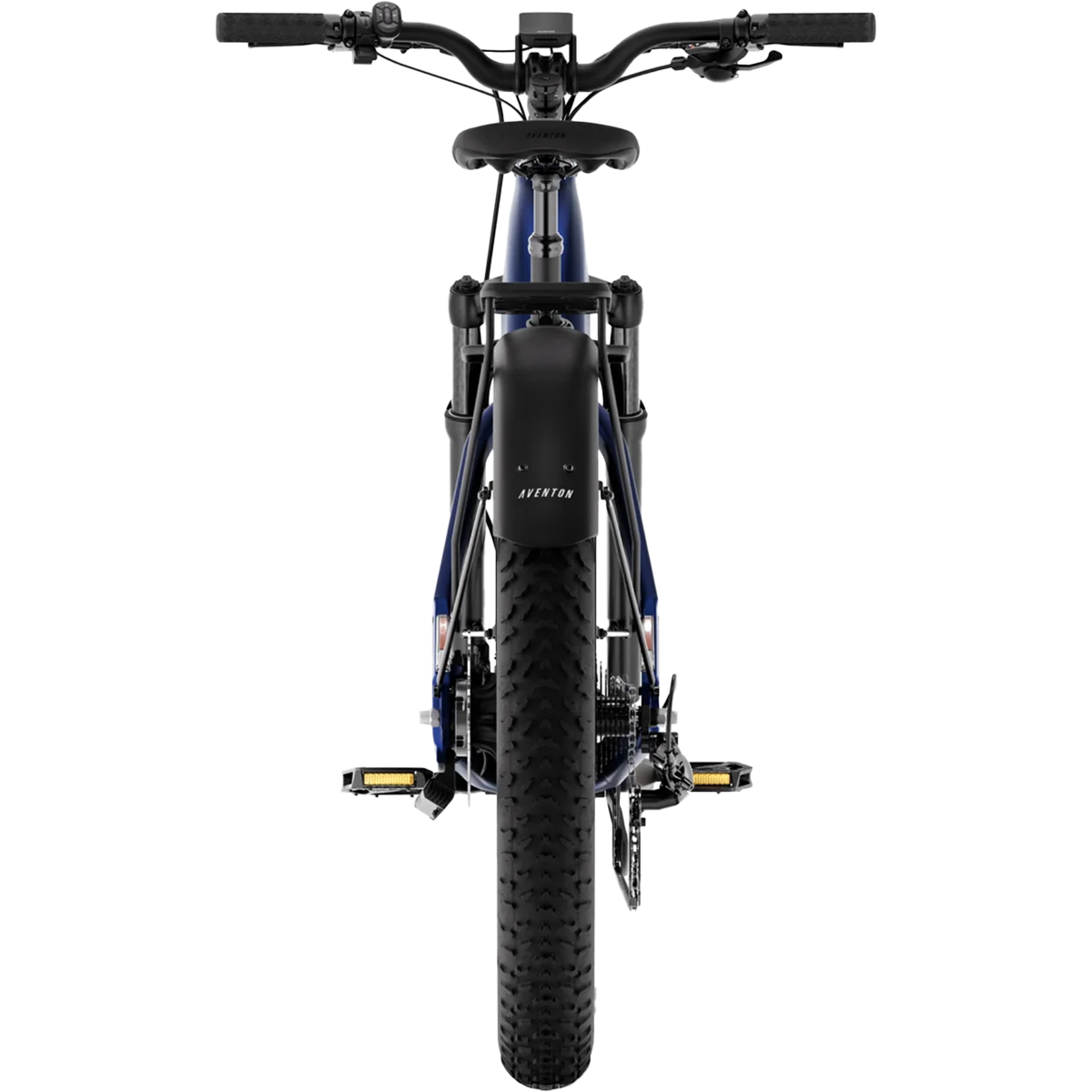

- Aventure 3 Step Through Ebike
- Weight: 77 lbs
- Total Weight Limit: 400 lbs
- Rider Height: R: 4'11" -5'7" | L: 5'7" - 6'1"
- Ebike Class: Class 2 Ebike
- Water Resistance: IPX6
- Range: Up to 65 miles
- Battery Safety Certifications: Certified to UL 2271
- Ideal Use: All-Terrain
- Bike Safety Certifications: UL Safety Certified UL 2849
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production
-
Battery
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells -
Max Torque
80 Nm -
Motor
36V, 750W Hub Drive -
Range
Up to 65 miles -
Top Speed
Class 1: 20 mph (Adjustable to Class 2: 28 mph)
| COMPONENT | PART |
|---|---|
| Frame | 6061 Aluminum, Gravity Cast Front Triangle |

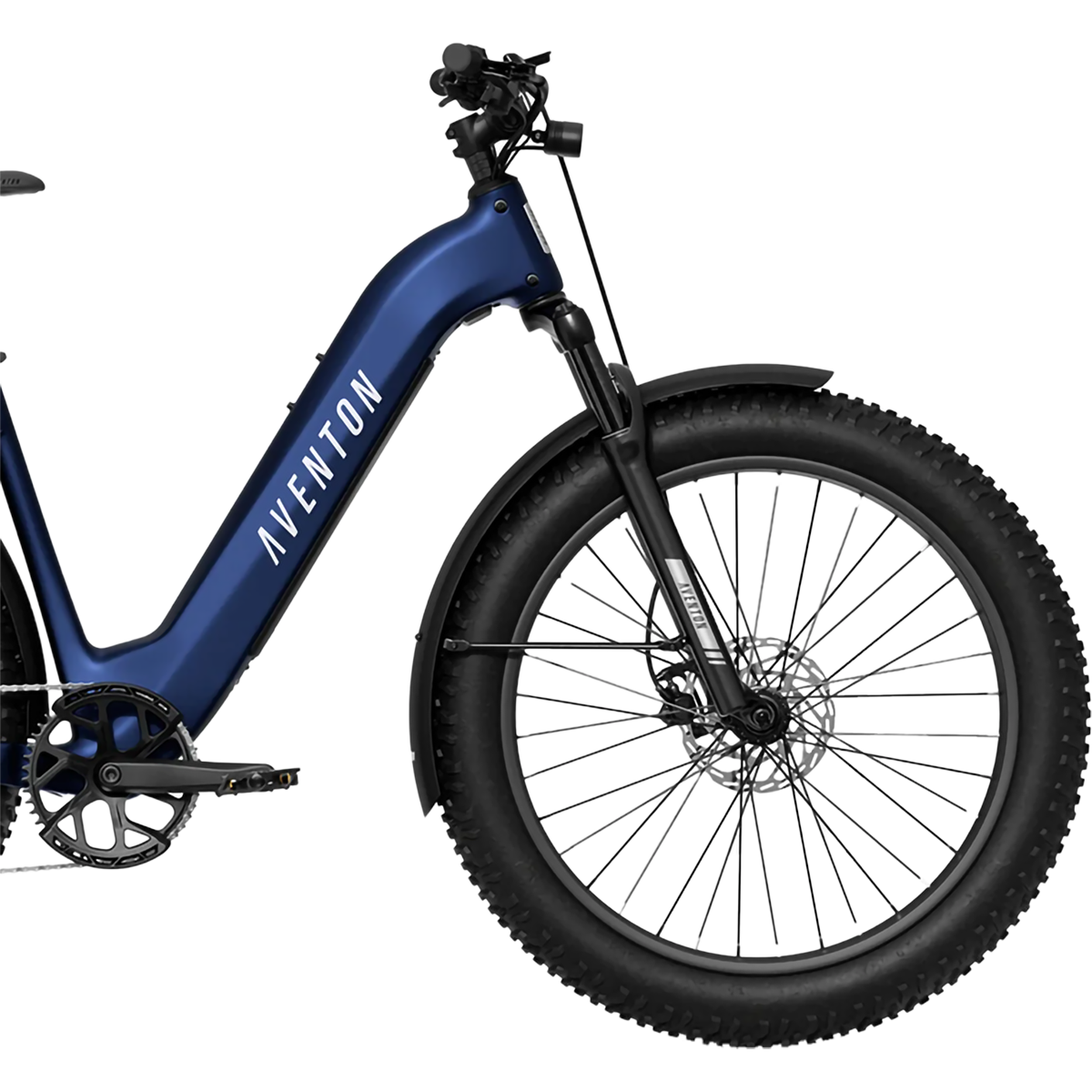

| Fork | Aventon/Zoom Suspension Fork, 80mm travel, with lockout |
| Rear Spacing | 190mm |
| Fork Spacing | 135mm |
| Frame Style | Step-Through |
| Front Wheel | 26", 36 hole, 13g, Double Wall Aluminum Fat Tire Rim, Nutted Axle, Schrader Valve |
| Rear Wheel | 26", 36 hole, 12g, Double Wall Aluminum Fat Tire Rim, Nutted Hub Drive, Schrader Valve |
| Tires | Inova 26x4.0 puncture resistant |
| Speed | Class 2 |
| Motor | 36V, 750W Hub Drive |
| Motor Torque | 80Nm |
| Motor Power | 750W (1188 Peak) |
| Display | Aventon BC280 |
| Battery | Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells |
| Battery Weight | 8.7lbs |
| Controller | 36V/33A |
| Throttle | Aventon LH Handlebar Mounted |
| Sensors | Double Sided Bottom Bracket Torque Sensor |
| Charger | 36V Output: 42V/ 4A |
| Charging time from 0% to 100% | 5 hours |
| Lights | Front and rear lights integrated |
| Front Brake | Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire |
| Rear Brake | Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire |
| Front Brake Rotor | Tektro 180mm 6 bolt |
| Rear Brake Rotor | Tektro 180mm 6 bolt |
| Rear Derailleur | Shimano Altus 8-Speed |
| Shifter | Shimano 8-Speed Trigger |
| Chain | 7/8 Speed 118L |
| Cassette | 12-32T / 8 Speed Shimano CS HG200-8 |
| Chainring | 48T |
| Chainring BCD | N/A |
| Crankset | 3pc, 170mm crank arm |
| Bottom Bracket | 100x177 Square Taper, Double Sided Torque sensor bottom bracket |
| Pedals | 9/16" Alloy Platform |
| Saddle | Aventon Saddle |
| Seatpost | Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel |
| Seatpost Clamp | 34.9mm |
| Handlebars | Aluminum 31.8mm, 680mm |
| Grips | Aventon Lock on grips |
| Headset | Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs |
| Kickstand | Included, rear mount |
| Rear Rack | Included |
| Fenders | Included |
* Specs subject to change
