Description

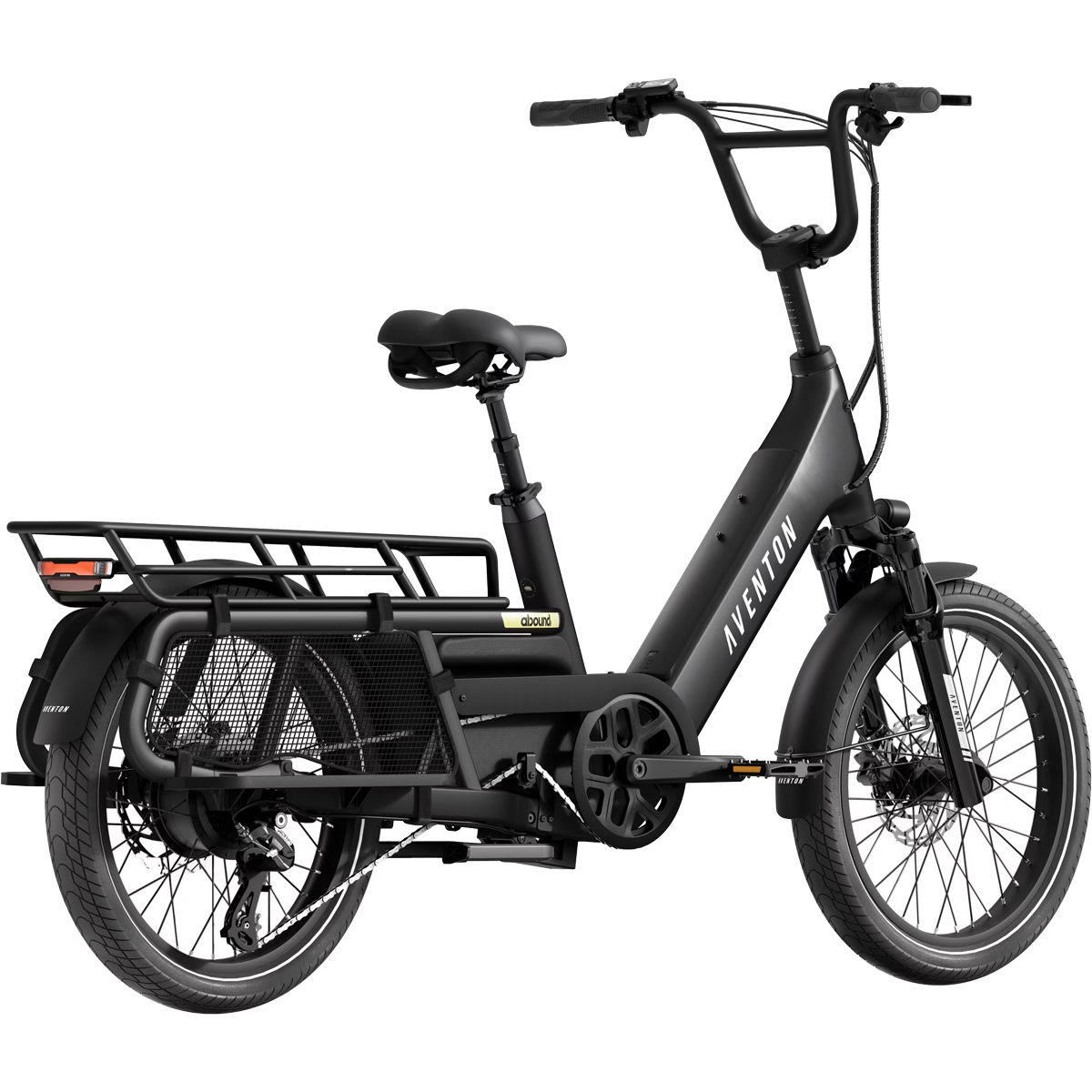

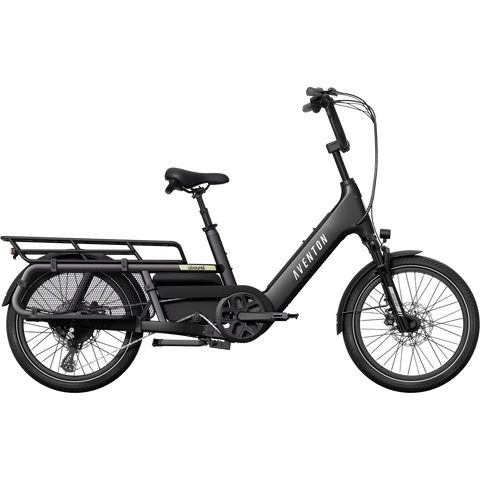

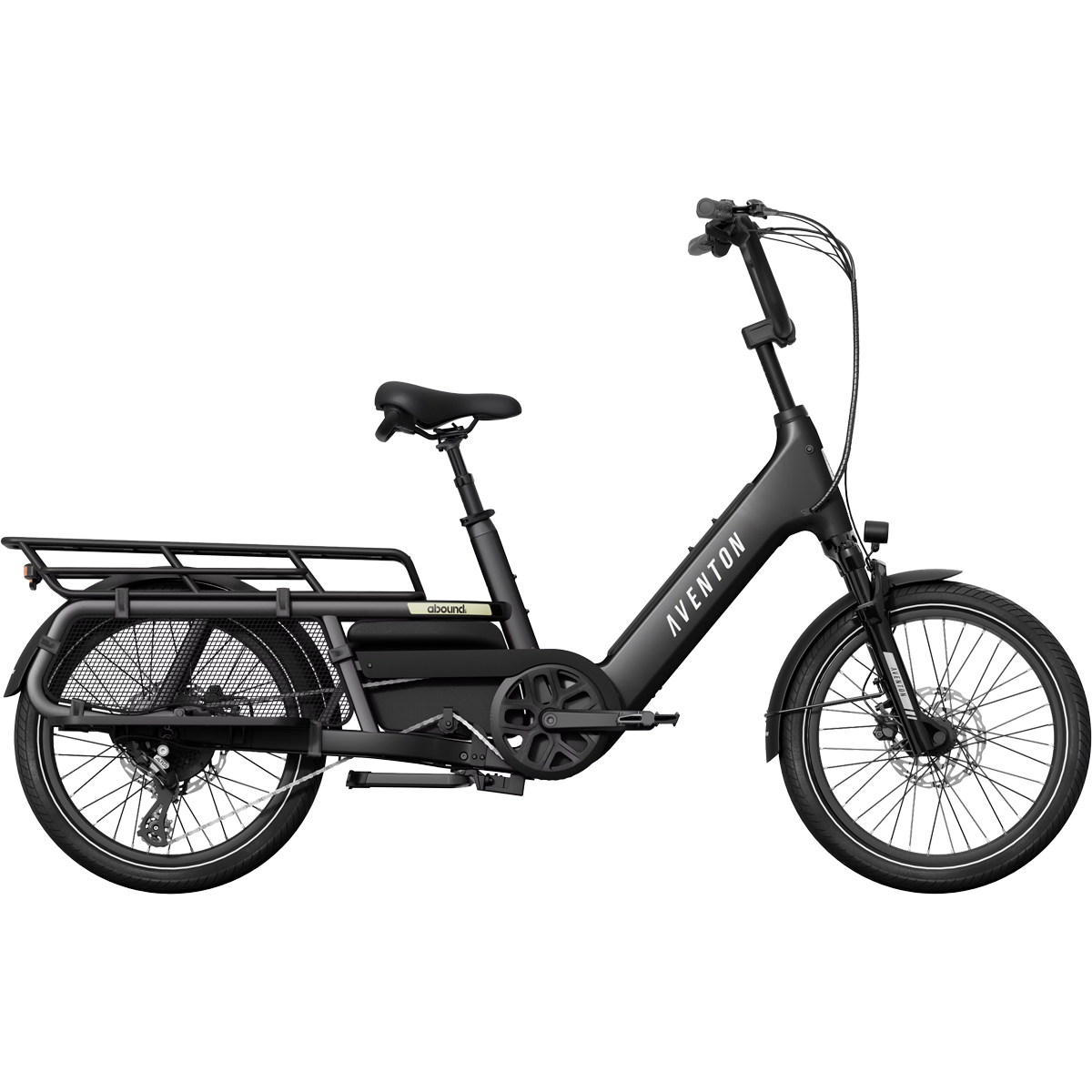

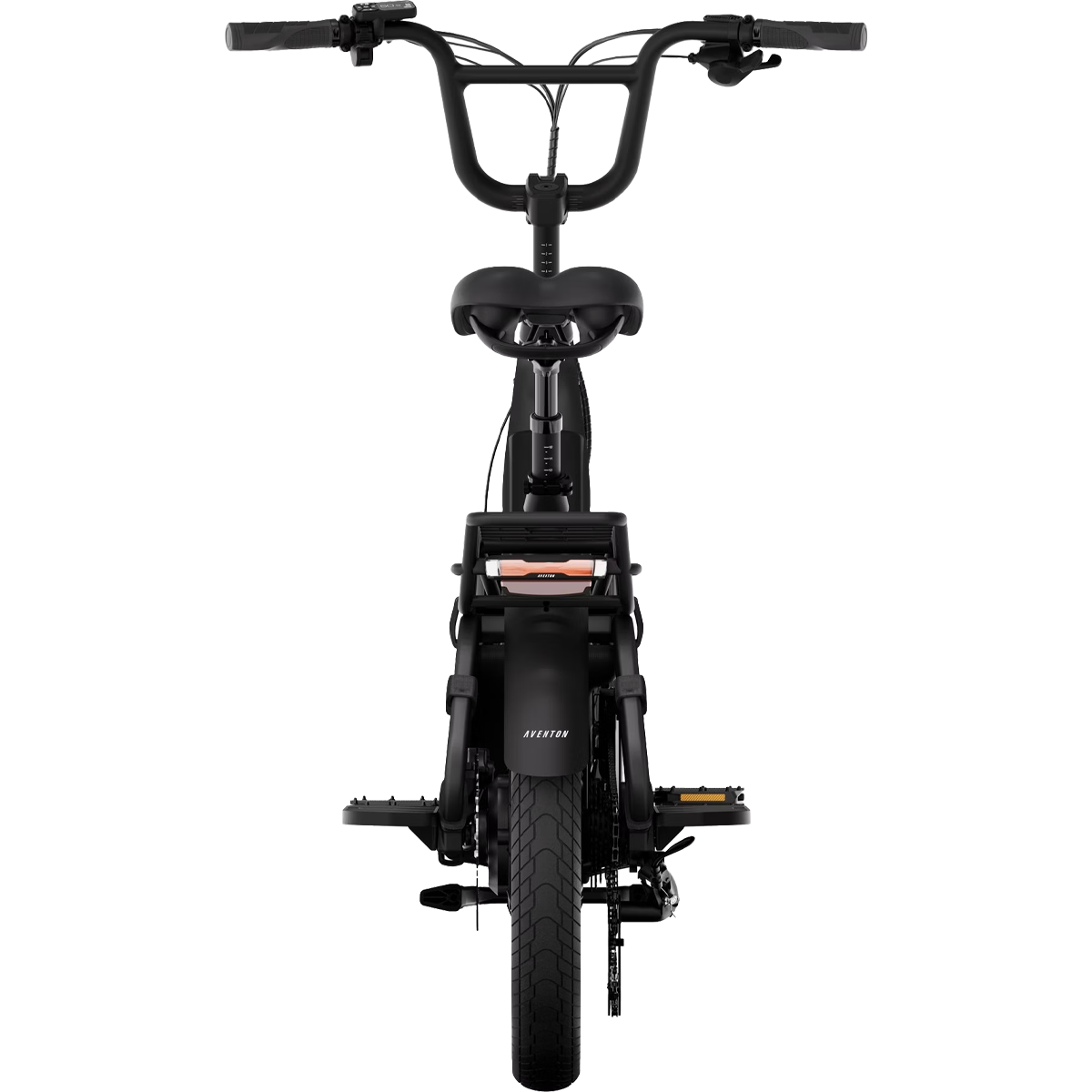

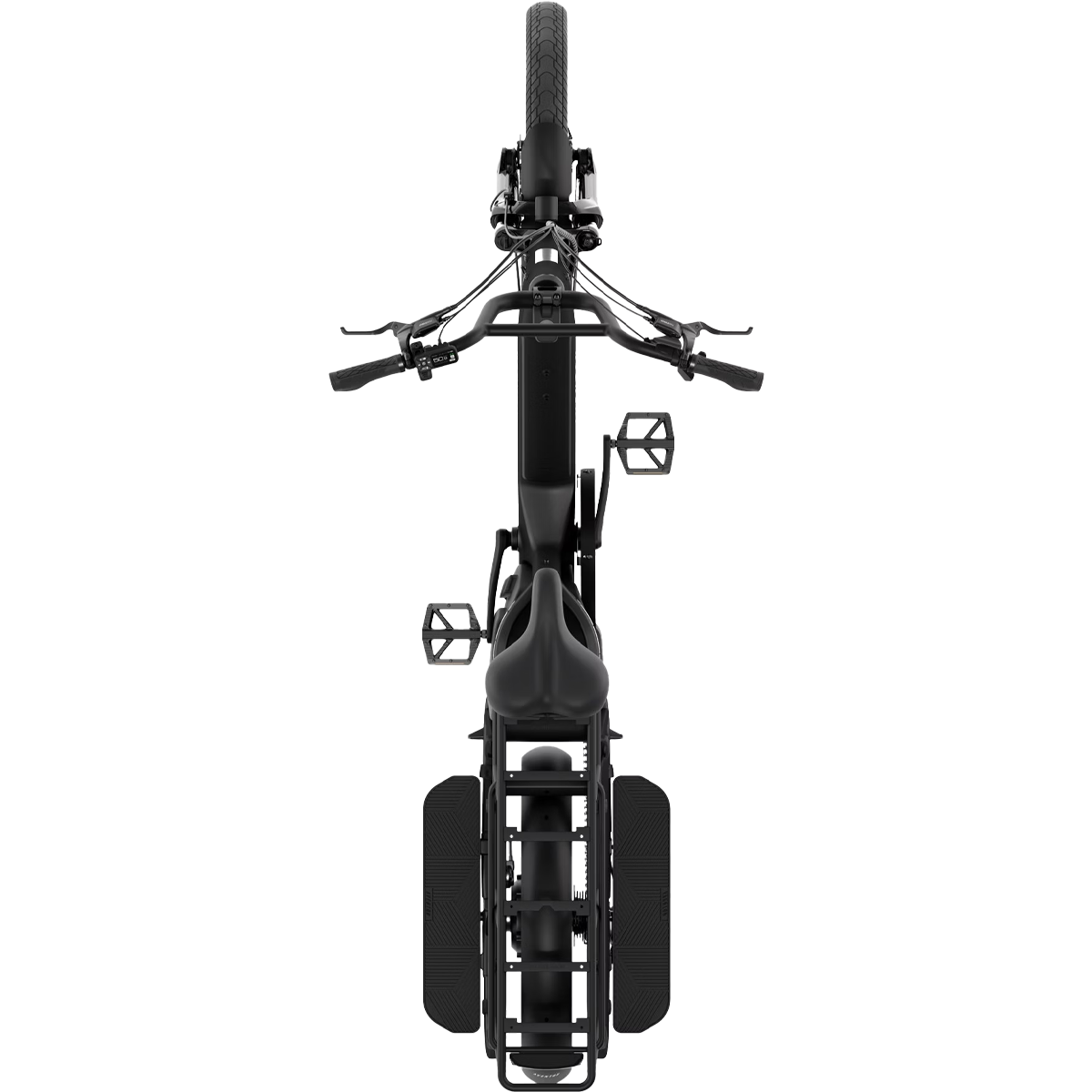

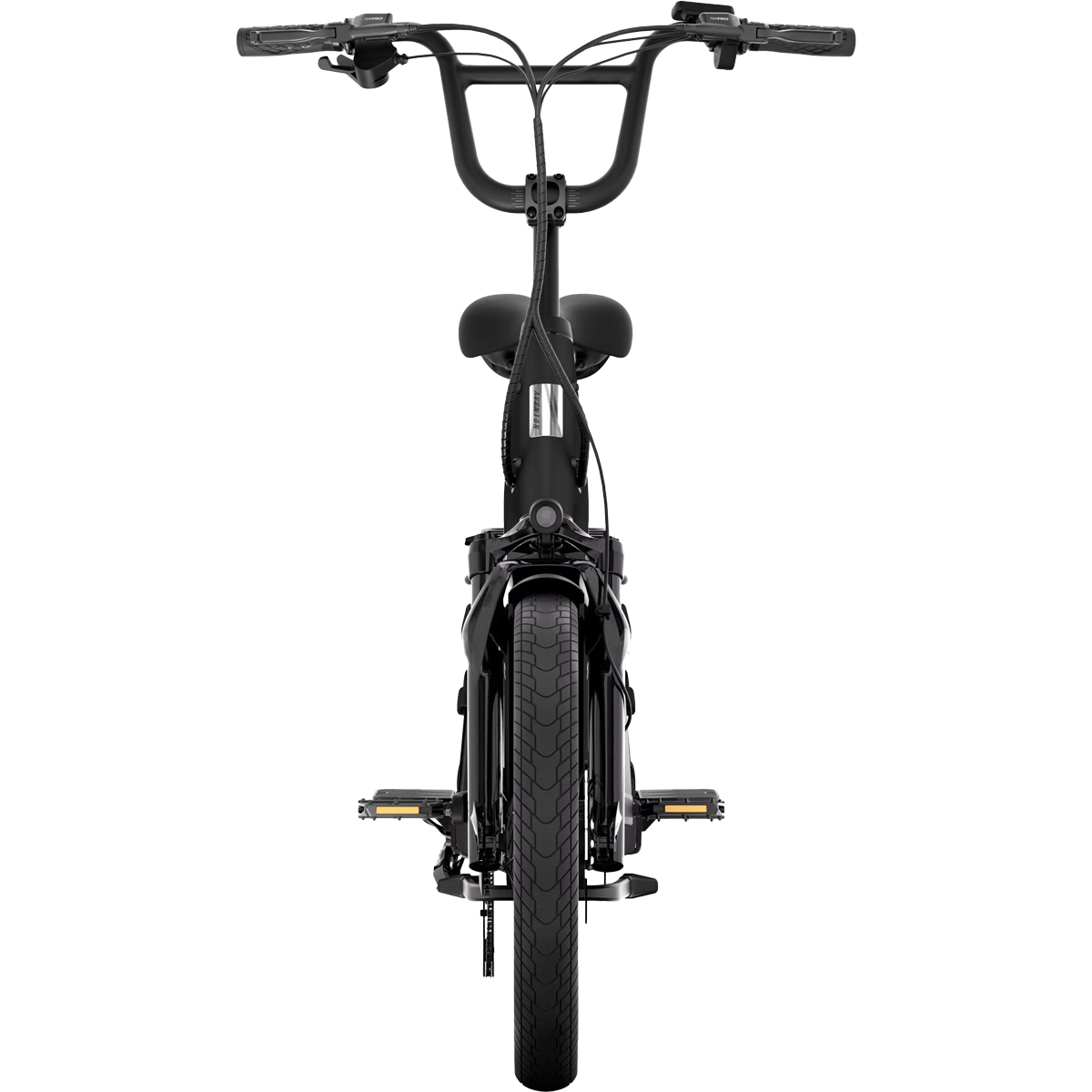

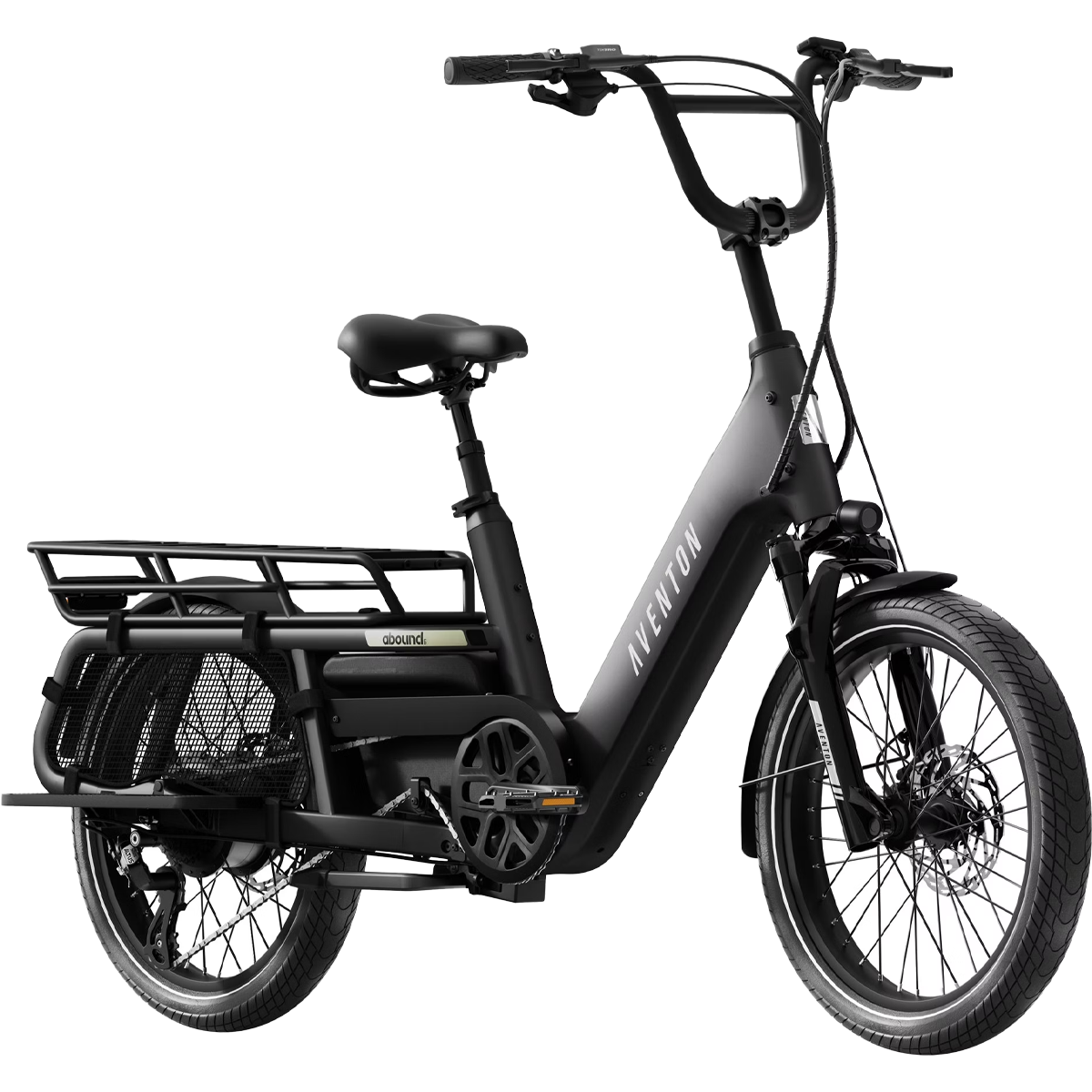

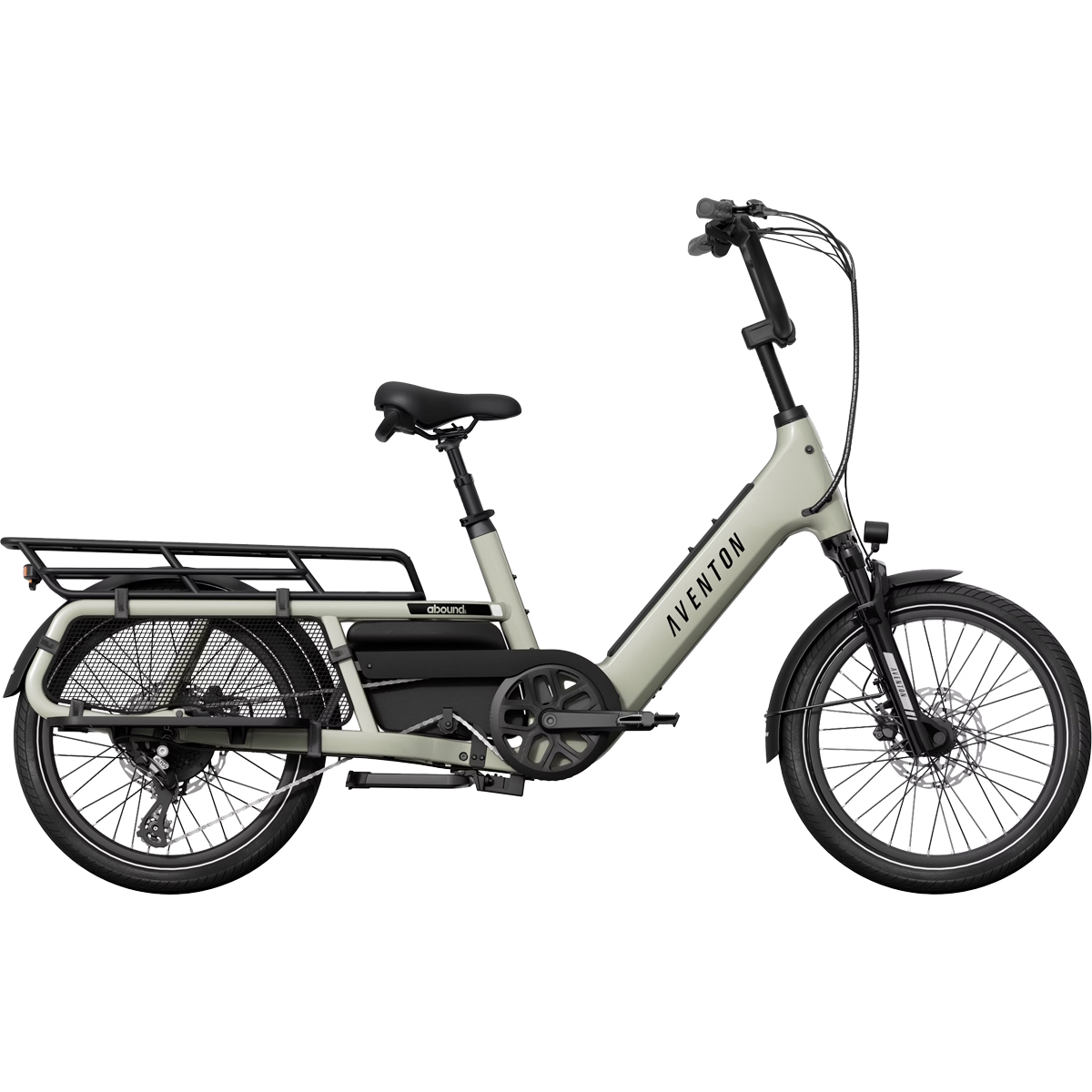

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.
- Enhanced Security meets Advanced Technology: The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock, Geofencing and Passcode safeguards your Abound LR and deliver an ultimate peace of mind*
- Remote Lock and Geofencing: The smart remote locking functionality lets you immobilize your bike right from the Aventon app. And the Geofencing feature lets you define the areas allowed and the distances prohibited
- Password and Keyless Battery: Create your own six input passcode using the control pads on the bike display. With a keyless battery system allowing you to remove your battery directly from your bike display, no need to keep track of another set of keys. All that's left to worry about is when you can ride next

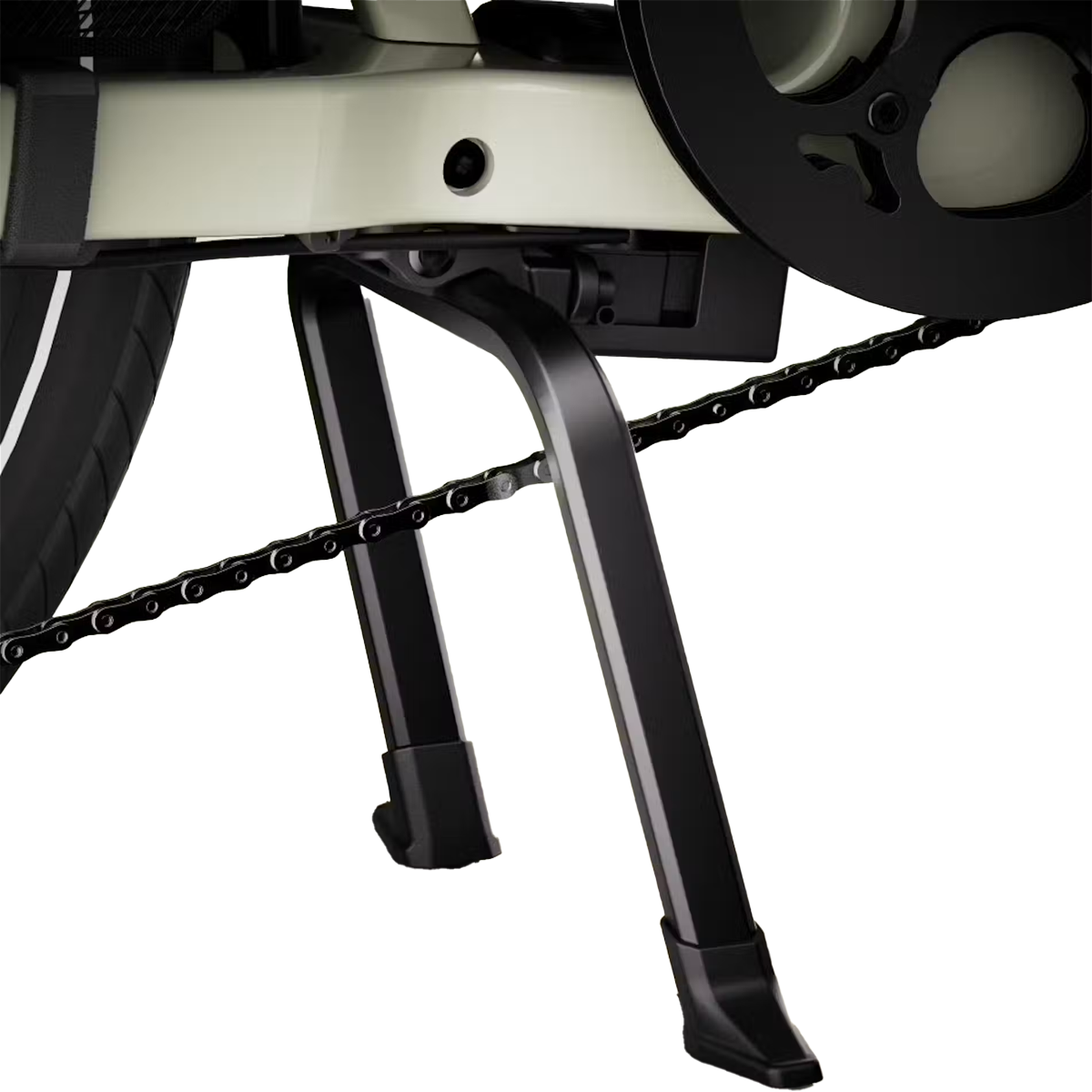

- E-Lock Kickstand & Alarm: Quickly and easily activate a kickstand lock from your display or the Aventon app. Furthermore, whenever your bike is moved or tampered with, an alarm system will activate audio and visual alerts to deter theft
- Storage Bag with Lock: The lockable storage bag lets you store and protect the valuable items you might need to bring along for the long haul. Create your own 3 digit combo password to unlock the zippers and access your essentials
Specifications are subject to change without notice. All bike and frame weights are based off pre-production painted frames. Weights may vary in final production.
*Certain features of this electric bike require a 4G data connection. A complimentary 4G connection subscription is included for the first year, beginning from the product service registration date. After the first year, a paid 4G connection subscription will be required to maintain access to these services. Please note that data subscription fees and terms may apply
-
Battery
Removable Internal Lithium-ion, 36v -
Max Torque
80Nm -
Motor
Shengyi 36V 750w -
Range
Up to 60 miles -
Top Speed
Class 2: Top speed 20 mph
Component | Part |
---|---|
EBIKE CLASS | Class 2 Ebike |
MOTOR | Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak) |
THROTTLE | Aventon LH Handlebar Mounted |
MOTOR TORQUE | 80Nm |
CONTROLLER | 36V/33A |
DISPLAY | Aventon BC147 |
SPEED | Class 2 - Up to 20 mph |
BATTERY WEIGHT | 8.7lbs |
BATTERY | Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells |
SENSORS | Double Sided Bottom Bracket Torque Sensor |
PEDAL ASSIST | 3 Levels (with Ride Tune Customization) |
CHARGER | 36V Output: 42V/ 4A |
CHARGING TIME FROM 0% TO 100% | 5 hours |
RANGE | Up to 60 miles |
FRAME | Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery |
WEIGHT | 88lbs |
PEDALS | 9/16" Composite Platform |
FORK | Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions |
REAR SPACING | 175mm |
FORK SPACING | 110mm |
CARRY CAPACITY | Carry Up To 2 Passengers |
TOTAL WEIGHT LIMIT | 440 lbs |
REAR RACK WEIGHT LIMIT | 143 lbs |
KICKSTAND | E-Lock Kickstand w/ Alarm |
BOTTOM BRACKET | Square Taper, Sealed, Dual-Sided Torque Sensor |
CRANKSET | 3pc, 165mm crank arm |
REAR DERAILLEUR | Shimano Altus RD-M310 8 Speed |
CASSETTE | 12-32T / 8 Speed Shimano CS HG200-8 |
LIGHTS | Front and Rear Lights Integrated w/ Turn Signals |
SHIFTER | Shimano 8 Speed Trigger SL-M315-8R |
FRONT BRAKE | Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire |
REAR BRAKE | Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire |
FRONT BRAKE ROTOR | 180mm 6 bolt |
REAR BRAKE ROTOR | 203mm 6-bolt |
CHAIN | 7/8 speed 154L |
CHAINRING | 52 tooth |
CHAINRING BCD | 104 |
FRONT WHEEL | Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve |
REAR WHEEL | Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve |
TIRES | 20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls |
SADDLE | Aventon Saddle w/ grab handle by Selle Royal |
SEATPOST | Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel |
SEATPOST CLAMP | 34.9mm |
HANDLEBARS | BMX Style Aluminum 31.8mm, 720mm |
HEADSET | H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs |
GRIPS | Aventon Ergonomic Comfort lock on grips |

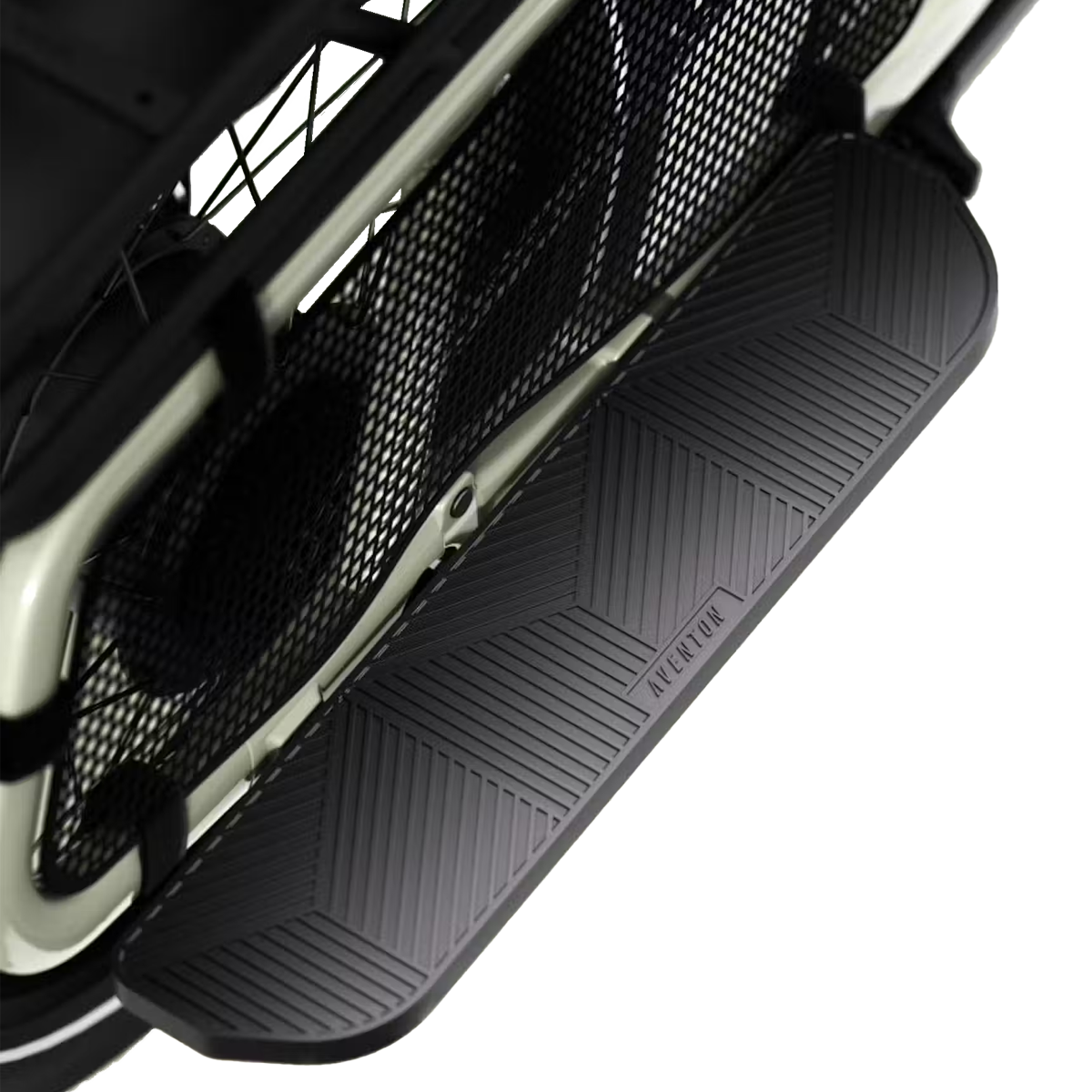

FOOTBOARDS | Included |
STORAGE BAG | Locking, Included |
REAR RACK/FENDERS | Included |
WATER RESISTANCE | IPX4 |
BATTERY SAFETY CERTIFICATIONS | Certified to UL 2271 |
SAFETY CERTIFICATIONS | UL and TUV Safety Certified UL 2849 |
IDEAL USE | Cargo & Utility |
* Specs subject to change
