Ibis DV9 NX w/ Dropper

Regular price $ 2,829.00

S
M
L
XL

This product may be purchased online but is available only for in-store pickup.

  Free shipping and returns!

Product Details
  • Summary
  • Components
  • Geometry
  • Bike Services

Summary

Frame

Drivetrain

Crank

Brakes

Wheels

Ibis understands that not all of us want or can afford multiple mountain bikes and that's why we're super excited about its new, ultra-versatile DV9 NX Complete Mountain Bike. Given the hardtail's lightweight, durable, and stiff carbon construction and geometry that's equally at home on hot laps after work, Saturday cross-country racing, and Sunday exploratory rides, we'd be hard pressed to find another steed that's able to cover such a wide spectrum of riding. This build gets SRAM's value-packed NX drivetrain, firing off precise shifts throughout its wide range and a FOX Float Rhythm fork soaking up the trail chatter up front.

The impetus for the DV9 came from Ibis' CEO Hans Heim wanting to create a versatile bike that his high school daughter Lili could race and train on yet be affordable enough that she could actually buy it. Lili has done the DV, short for development, proud by winning three varsity races, stood on five varsity XC podiums, and took first place overall in the competitive 2018 Northern California NICA league on a prototype frame. Carbon fiber construction was a given as we haven't seen a non-carbon frame from Ibis in almost a decade. This yields a frame weight that comes in at a remarkable 1,204g while somehow hitting a price point just a tick above aluminum. The other elements that give this bike more mileage over the average hardtail are its massive tire clearance, easily handling 29 x 2.6-inch rubber, slacker than usual XC geometry, especially with the 120mm length FOX fork that's spec'd here, and the ability to run an internally routed dropper post.
Other frame spec niceties on the DV9 include the now standard Boost spaced rear end that improves frame and wheel stiffness, as well as strength, smart internal cable routing except for the rear disc brake housing, an in-house favorite creak-free, threaded bottom bracket, and a rear brake caliper, mount with massive 203mm rotor clearance. What we really dig about this ride is that you can pedal the DV9 in its stock form here and give your full suspension riding buddies a fit on technical trails and if you lower the fork to 100mm and slap on some 2.25-inch meat, you're knocking on the door of some World Cup XC builds.
Compared to its previous hardtail, the Tranny, the reach on the DV9 grows by 20-24mm depending on the size. The headtube angle also slackens from 71-degrees to a trail-worthy 67.4-degrees with the included 120mm fork or a nice mix of agility and stability of a 68.5-degree angle with a 100mm fork. You can expect it to feel planted when railing turns, while the short chainstays enhance its responsiveness and given its lack of rear suspension, you'll appreciate its vibration damping with the rocket ship acceleration that can only come from a rigid rear end. The front triangle bears some obvious similarities to its full suspension rigs, both in terms of aesthetics, and features with its versatile cable ports and stiffness-enhancing tapered headtube.

  • Frame: Carbon, Ibis DV9, 148mm boost, 2 bottle cage mounts
  • Fork: Fox Float 34 Rhythm Grip, 29", 120mm, 110x15
  • Headset: Cane Creek 40, ZS44/EC49
  • Shifter: SRAM NX 11 Speed
  • Rear Derailleur: SRAM NX 11 Speed
  • Crankset: SRAM NX, 30t, 170mm (s) 175mm (m, l, xl)
  • Bottom Bracket SRAM GXP
  • Chain: SRAM PC110
  • Cassette: SRAM PG 1130, 11-42
  • Brakes: SRAM Level (hydraulic disc)
  • Rotors: SRAM Centerline, 180/160mm
  • Wheelset: Ibis 938 Aluminum
  • Tires: Schwalbe Nobby Nic, 29x2.6"
  • Handlebars: Ibis Aluminum, 780mm
  • Stem: ibis, 31.8mm, 50mm
  • Grips: Lizard Skin Charger Evo
  • Seatpost: Fox Transfer Dropper
  • Seatclamp: Ibis
  • Saddle: WTB Silverado
  •

    Components

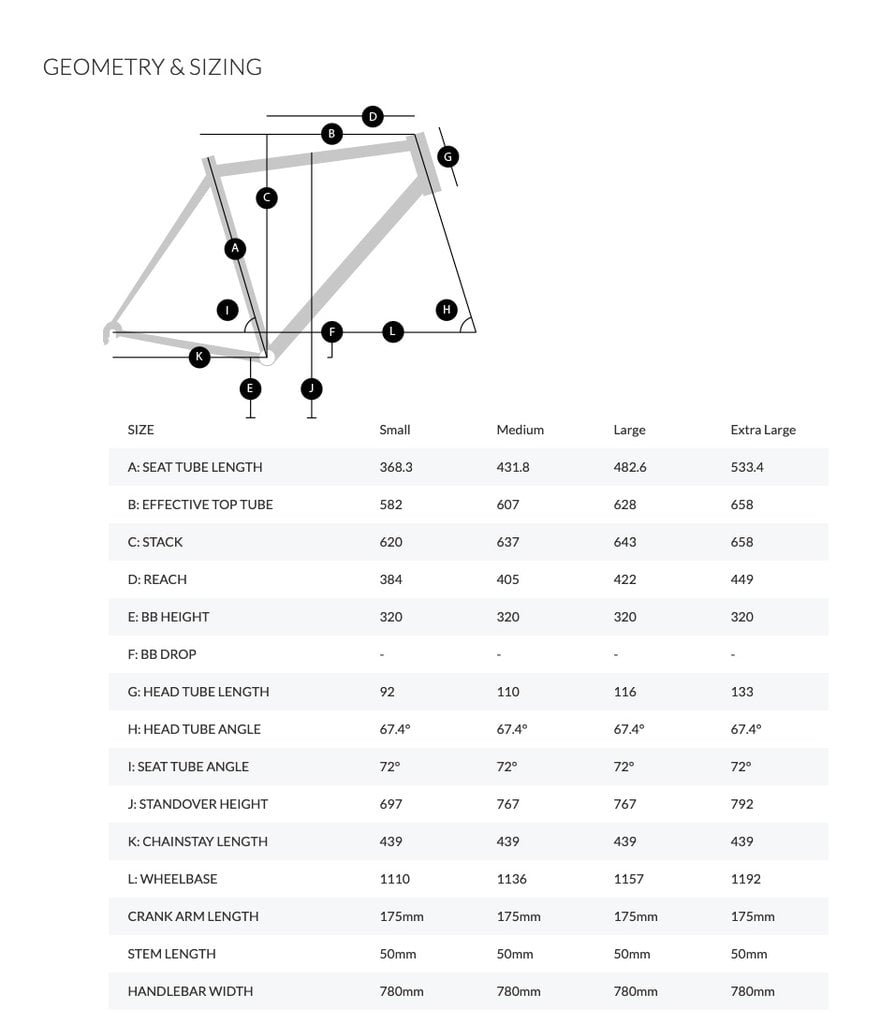

    Geometry

    Bike Services

    Don't forget! Every bike purchase comes with one free bike service within 90 days, 50% off all bike services within two years, and 50% of a bike fit of your choice! We have full-service bike shops at all our stores.

    Prices are subject to change by level of difficulty. Prices listed do not include parts.

    BIKE MAINTENANCE

    Basic Tune  $95
    • Check/adjust hubs, BB, headset
    • True F+R wheels and adjust spoke tension by hand
    • Clean/adjust F+R derailleurs and F+R brakes
    • Lube chain and cable housing
    • Wipe down fork stanchion and lube with fork oil
    • Grease stanchion port if any
    • Clean rotors and sand uneven pads
    • Check and tighten all bolts to manufacturer spec (cranks, chain ring, pedals, stem, handle bar, bottle cage, seat post, saddle, brake levers, rotors)
    Drive Train Cleaning
    $85
    • Remove and clean chain, pedals, crankset, chain rings
    • Remove and clean BB, F+R derailleurs, cassette
    • Align rear derailleur hanger
    • Reinstall and adjust all above parts
    • Clean brake calipers
    Major Tune
    $170
    Includes a Basic Tune and Drive Train Cleaning
    Overhaul $280
    Major Tune plus the following:
    • True/round/dish F+R wheels and re-tension spokes with tensiometer
    • Disassemble, lube, and reassemble F+R hubs
    • Disassemble, lube, and reassemble headset



    BIKE BUILDS
    Hourly Rate
    $85/hour
    New from box $120
    Used from box $85
    Pro Build $255



    PROFESSIONAL BIKE FITTING (learn more).
    Call your local store to schedule.
    Basic Bike Fit (50% off with bike purchase) $150
    Premium FIST Bike Fit (50% off with purchase of road race or tri bike) $250
    Fit adjustment $45
